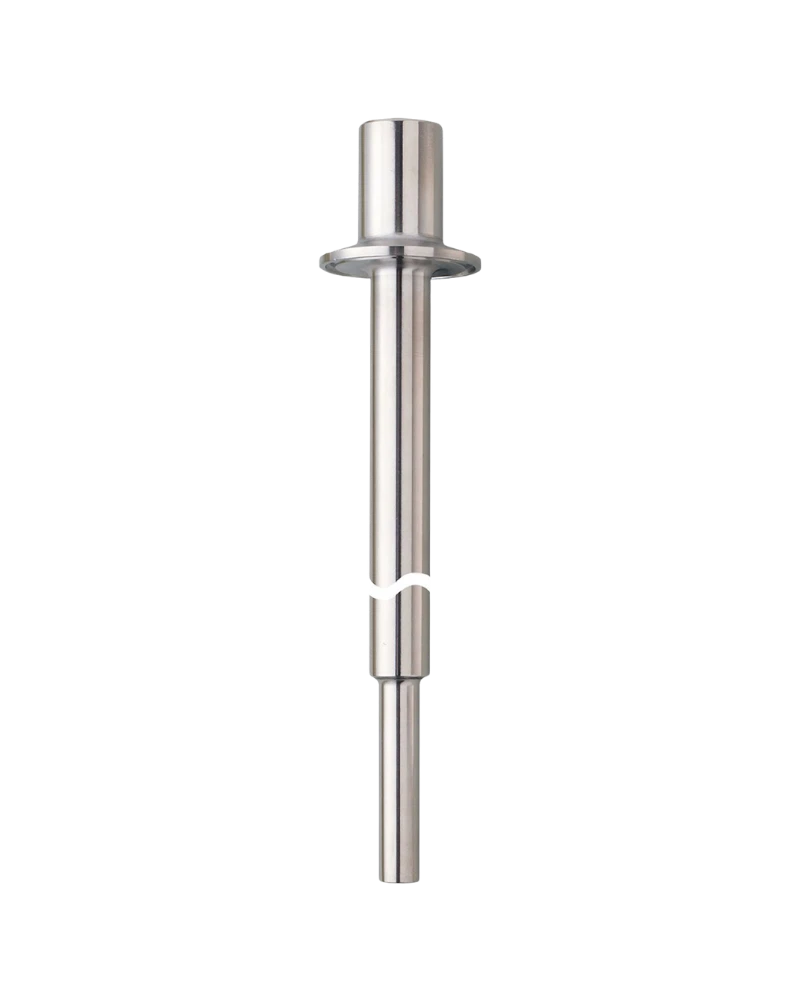

IFM E37810 is a hygienic thermowell with a 1.5-inch Clamp process connection for temperature sensors. Made from 316L stainless steel, it provides reliable sensor protection, 25 bar pressure resistance and easy integration into hygienic process systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hygienic Clamp Connection
E37810 uses a 1.5-inch Clamp connection based on DIN 32676 / ISO 2852, making it suitable for hygienic process installations. The clamp design supports convenient installation and removal during maintenance.
Reliable Sensor Protection
The thermowell protects temperature sensors from aggressive media, high flow velocities and mechanical stress. It allows the sensor to be replaced without directly exposing the sensor to the process environment.
316L Stainless Steel
The wetted parts are manufactured from stainless steel 316L / 1.4404. The smooth surface finish of Ra < 0.6 µm supports hygienic applications where cleanable process connections are important.
Industrial and Hygienic Applications
E37810 provides a 100 mm sensor designation with 64 mm installation length and 25 bar pressure rating. It is particularly suited to food, beverage and other hygienic process applications.
Hygienic 1.5-inch Clamp connection
316L stainless-steel construction
25 bar pressure rating
Smooth Ra < 0.6 µm wetted surface
Easy sensor replacement
Suitable for hygienic process environments
Food processing equipment
Beverage processing systems
Dairy processing plants
Hygienic production lines
Process temperature monitoring
Industrial automation systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37810 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/1.5" CLAMP/L=100 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | 1/2" NPS, Ø6 mm |
| Sensor Compatibility | Suitable for G1/2 and 1/2" NPT |
| Process Connection | Clamp DN25–DN40 (1–1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.6 µm |
| Installation Length EL | 64 mm |
| Bore Length BL | 101.6 mm |
| Weight | 241 g |
| Pack Quantity | 1 pc |
