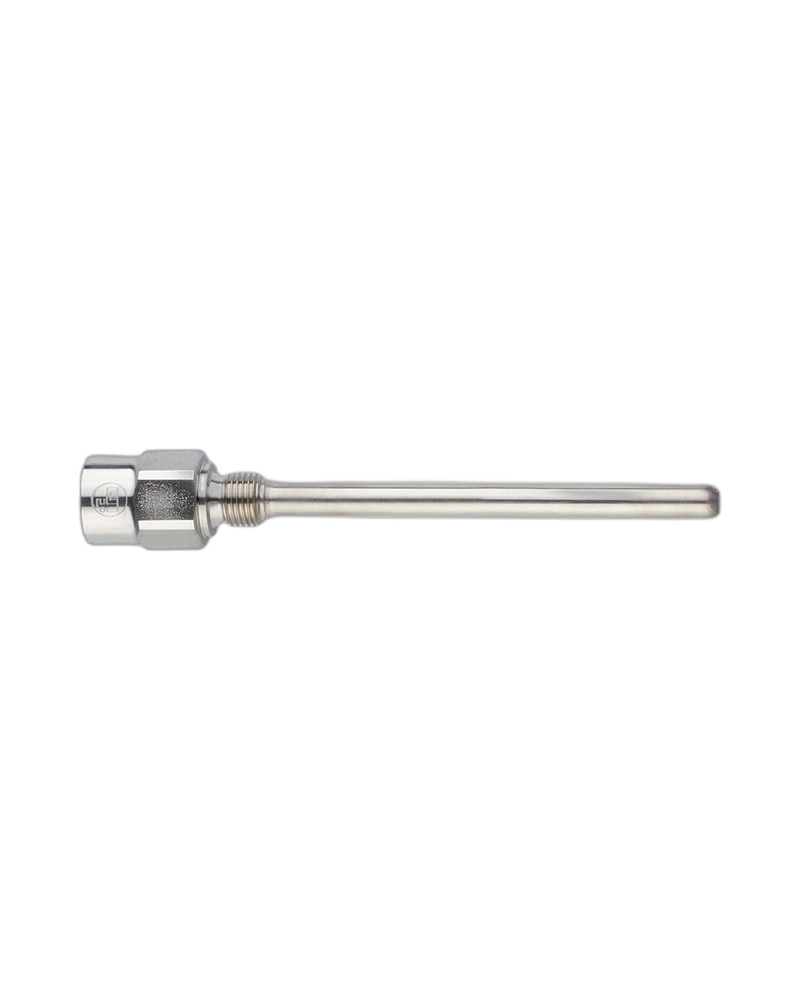

IFM E37720 is a long-length thermowell designed to protect temperature sensors in industrial process applications. Its 316Ti stainless-steel construction, G1/4 connection and 150 mm installation length provide reliable sensor protection and process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Sensor Protection
E37720 is designed for applications where the temperature sensor requires a longer insertion depth. The thermowell isolates the sensor from direct process exposure while allowing accurate temperature measurement.
G1/4 Threaded Design
The model incorporates a G1/4 process connection and Ø6 mm sensor connection for compatible temperature sensors. The threaded interface enables convenient installation and secure sensor positioning.
Corrosion-Resistant Construction
The thermowell is manufactured from stainless steel 316Ti / 1.4571. This material provides durability and resistance to corrosion, making the product suitable for a variety of industrial process environments.
150 mm Installation Length
The 150 mm installation length allows the temperature sensor to reach deeper into the process medium. With a pressure rating of 100 bar, E37720 is designed for reliable operation under demanding conditions.
Extended 150 mm sensor installation length
Reliable temperature sensor protection
316Ti stainless-steel construction
G1/4 threaded process connection
100 bar pressure rating
Suitable for deeper process measurement points
Process temperature monitoring
Industrial tanks and vessels
Heating and cooling equipment
Production machinery
Process automation systems
Industrial temperature control
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37720 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/G1/4/L=150 |
| Application | For temperature sensors |
| Pressure Rating | 100 bar / 10 MPa |
| Material | Stainless steel 316Ti / 1.4571 |
| Sensor Connection | G1/4, Ø6 mm |
| Process Connection | G1/4 |
| Installation Length EL | 150 mm |
| Bore Length BL | 124 mm |
| Weight | 104.3 g |
| Pack Quantity | 1 pc |
| Maximum Application Temperature | < 250 °C |
