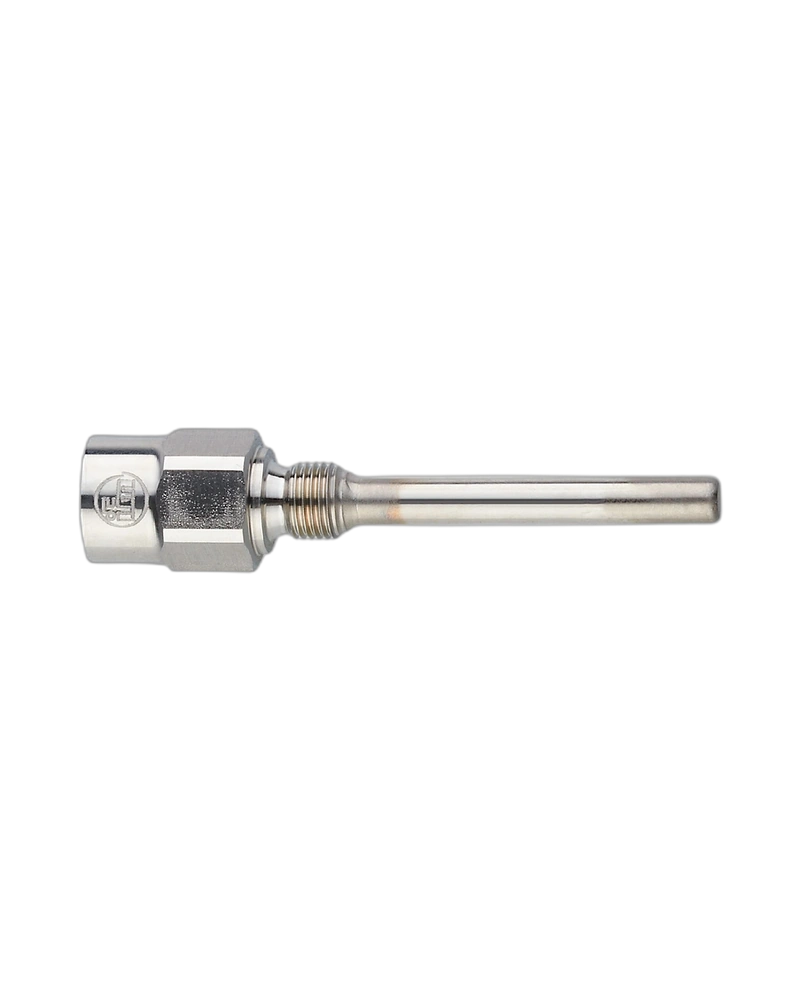

IFM E37710 is a stainless-steel thermowell designed for reliable protection of temperature sensors in industrial processes. It features G1/4 connections, a Ø6 mm sensor interface and 100 mm installation length for dependable temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Temperature Sensor Protection
E37710 protects the installed temperature sensor from direct exposure to process media, mechanical impact and demanding operating conditions. This helps maintain reliable temperature measurement while extending sensor service life.
G1/4 Process Integration
The thermowell features a G1/4 process connection and Ø6 mm sensor connection, providing a compact and practical interface for compatible temperature sensors. Its threaded design supports straightforward installation.
316Ti Stainless Steel Body
The housing is manufactured from stainless steel 316Ti / 1.4571, offering durability and corrosion resistance for industrial environments. The robust material supports long-term use in process monitoring applications.
100 mm Installation Length
With a 100 mm installation length and 100 bar pressure rating, E37710 is suitable for processes where deeper sensor positioning and reliable pressure resistance are required.
Protects temperature sensors from process conditions
Durable 316Ti stainless-steel construction
G1/4 threaded process connection
100 mm installation length
Pressure rating up to 100 bar
Suitable for demanding industrial applications
Industrial process temperature monitoring
Machine and equipment temperature sensing
Heating and cooling systems
Process automation
Industrial production equipment
Temperature control applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37710 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/G1/4/L=100 |
| Application | For temperature sensors |
| Pressure Rating | 100 bar / 10 MPa |
| Material | Stainless steel 316Ti / 1.4571 |
| Sensor Connection | G1/4, Ø6 mm |
| Process Connection | G1/4 |
| Installation Length EL | 100 mm |
| Bore Length BL | 74 mm |
| Weight | 100 g |
| Pack Quantity | 1 pc |
| Maximum Application Temperature | < 250 °C |
