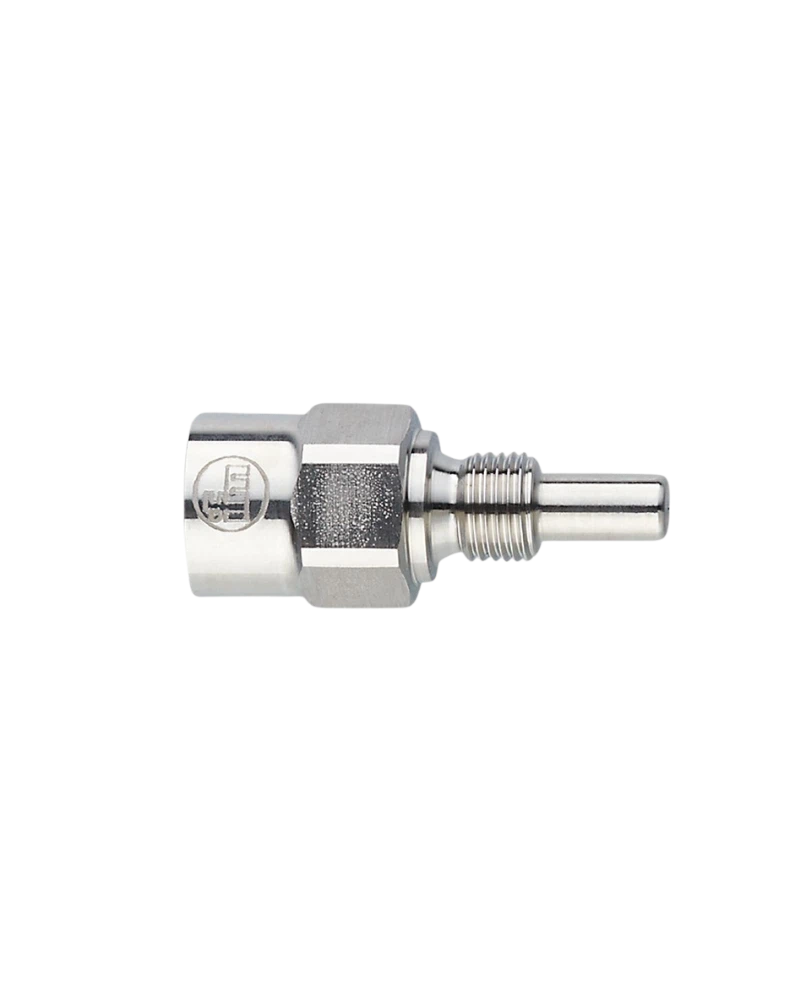

IFM E37700 is a stainless-steel thermowell designed to protect temperature sensors in demanding industrial processes. It features a G1/4 process connection, Ø6 mm sensor connection and 50 mm installation length for reliable temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Robust Sensor Protection
The IFM E37700 thermowell provides a protective barrier around the temperature sensor, helping shield the sensing element from aggressive media, mechanical stress and high process flow. Its robust construction supports dependable operation in industrial temperature measurement applications.
Compact G1/4 Connection
The thermowell is designed with a G1/4 process connection and a Ø6 mm sensor connection. This compact configuration makes it suitable for temperature sensors requiring a short installation length and convenient process integration.
Stainless Steel Construction
Manufactured from stainless steel 316Ti / 1.4571, the thermowell offers good mechanical strength and corrosion resistance. The material is suitable for demanding process environments where reliable sensor protection is required.
Reliable Industrial Performance
With a 50 mm installation length and 100 bar pressure rating, E37700 provides a practical solution for protected temperature sensing in machinery, process equipment and industrial automation systems.
Reliable protection for temperature sensors
Strong stainless-steel 316Ti construction
Compact G1/4 process connection
Suitable for high-pressure applications up to 100 bar
Supports easy sensor integration and replacement
Designed for industrial temperature measurement
Industrial temperature monitoring
Process equipment
Machine temperature measurement
Heating and cooling systems
Pumps and process machinery
Automation and control systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37700 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/G1/4/L=50 |
| Application | For temperature sensors |
| Pressure Rating | 100 bar / 10 MPa |
| Material | Stainless steel 316Ti / 1.4571 |
| Sensor Connection | G1/4, Ø6 mm |
| Process Connection | G1/4 |
| Installation Length EL | 50 mm |
| Bore Length BL | 27 mm |
| Weight | 84.9 g |
| Pack Quantity | 1 pc |
| Maximum Application Temperature | < 250 °C |
