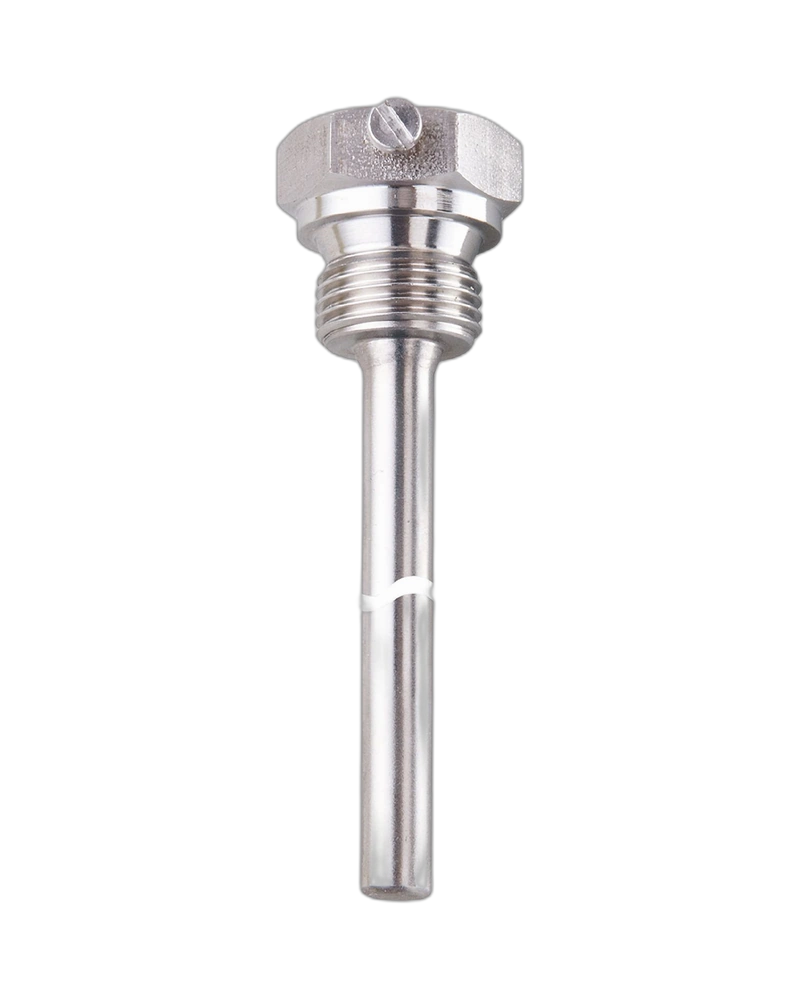

The IFM E37663 thermowell is a long-length protection solution for temperature sensors with a 350 mm installation length. It features a 6 mm sensor connection, G1/2 process connection, 333 mm installation length and 345 mm bore length. Its 316Ti stainless steel construction and 100 bar pressure rating provide reliable protection for deep industrial process temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37663 is an extended threaded thermowell designed for temperature sensors used in deep process measurement applications.
Its long construction allows compatible temperature sensors to reach deeper measurement points while protecting the sensing element from process conditions.
The 6 mm sensor connection and G1/2 process connection provide a practical threaded mounting arrangement for compatible temperature sensors.
The 316Ti stainless steel body provides durable mechanical protection for industrial applications. The thermowell is rated for 100 bar pressure under specified conditions below 250 °C.
Thermowell for temperature sensors
Designed for 350 mm sensor installation length
6 mm sensor connection
G1/2 process connection
333 mm installation length
345 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Long-length thermowell design
Suitable for deep process measurements
Deep tank temperature measurement
Process vessel monitoring
Long pipeline temperature sensing
Industrial process automation
Chemical processing
Process control systems
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37663 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/ 6mm/L=350 |
| Sensor Design | EL = 350 mm |
| Sensor Connection | Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 333 mm |
| Bore Length | 345 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 150–154 g |
| Pack Quantity | 1 piece |
