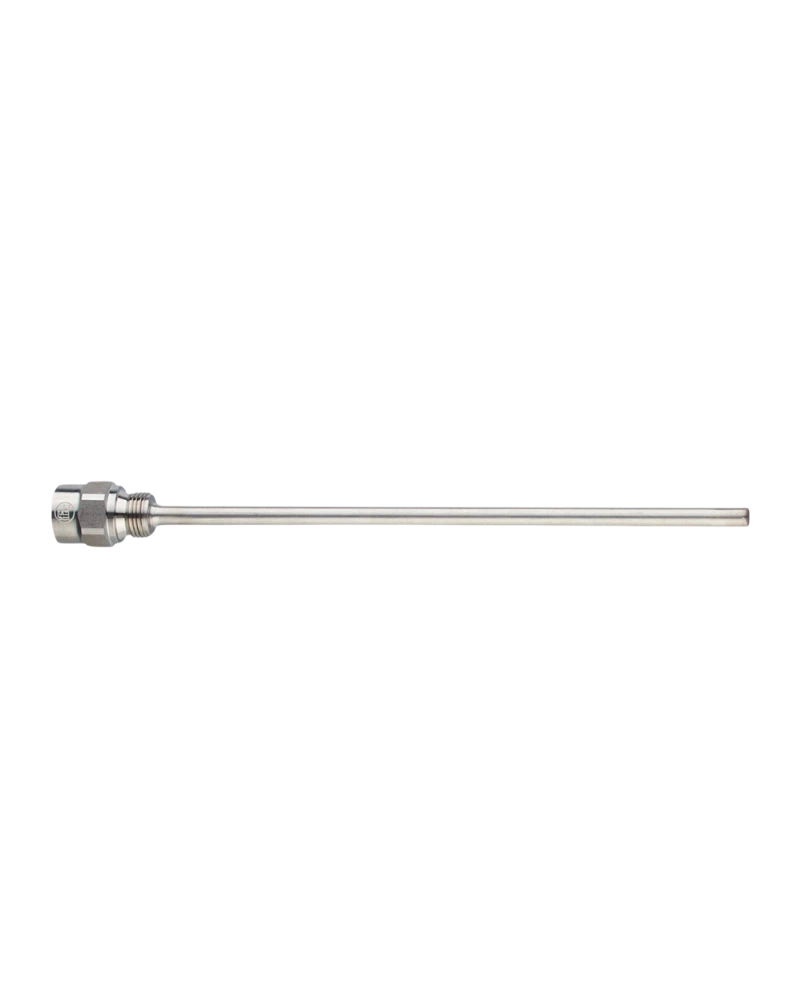

The IFM E37650 thermowell is designed for temperature sensors with a 300 mm installation length and provides extended sensor protection for deep process measurement. It features G1/2 sensor and process connections, a 6 mm sensor diameter and 274 mm installation length. Its 316Ti stainless steel construction and 100 bar pressure rating make it suitable for demanding industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37650 is an extended thermowell designed to protect compatible temperature sensors installed deep inside industrial process equipment.
Its 274 mm installation length and 300 mm bore length allow temperature sensors to reach deeper process measurement points in tanks, vessels and pipelines.
The G1/2 sensor connection and G1/2 process connection provide secure and practical installation with compatible process temperature sensors.
The thermowell is manufactured from 316Ti stainless steel and is rated up to 100 bar, providing durable sensor protection in demanding process environments below 250 °C.
Thermowell for temperature sensors
Designed for 300 mm sensor installation length
G1/2 sensor connection
6 mm sensor diameter
G1/2 process connection
274 mm installation length
300 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Extended deep-measurement design
Deep tank temperature measurement
Process vessel monitoring
Pipeline temperature measurement
Industrial process automation
Chemical processing
Machine temperature monitoring
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37650 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/G1/2/L=300 |
| Sensor Design | EL = 300 mm |
| Sensor Connection | G1/2, Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 274 mm |
| Bore Length | 300 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 187 g |
| Pack Quantity | 1 piece |
