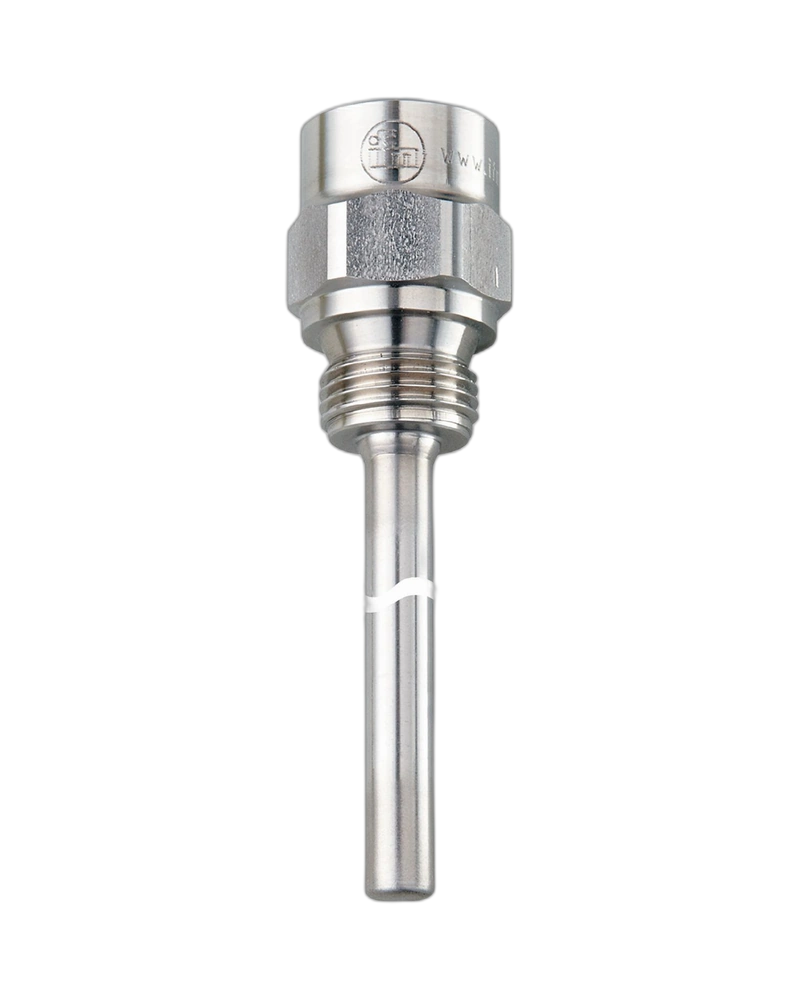

The IFM E37640 thermowell is designed for temperature sensors with a 250 mm installation length, providing extended protection for deep process measurement applications. It features G1/2 sensor and process connections, a 6 mm sensor diameter and 224 mm installation length. The 316Ti stainless steel construction and 100 bar pressure rating provide reliable performance in industrial process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37640 is an extended thermowell designed to protect compatible temperature sensors installed at deeper measurement locations.
Its 224 mm installation length and 250 mm bore length provide increased reach for temperature measurement inside tanks, vessels and process pipelines.
The G1/2 sensor and process connections provide secure integration with compatible temperature sensors and process equipment.
Manufactured from 316Ti stainless steel, the E37640 provides robust mechanical protection. Its 100 bar pressure rating supports demanding process applications below 250 °C.
Thermowell for temperature sensors
Designed for 250 mm sensor installation length
G1/2 sensor connection
6 mm sensor diameter
G1/2 process connection
224 mm installation length
250 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Suitable for deep temperature measurement
Deep tank temperature measurement
Process vessel monitoring
Pipeline temperature sensing
Industrial process automation
Chemical processing
Machine temperature monitoring
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37640 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/G1/2/L=250 |
| Sensor Design | EL = 250 mm |
| Sensor Connection | G1/2, Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 224 mm |
| Bore Length | 250 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 171 g |
| Pack Quantity | 1 piece |
