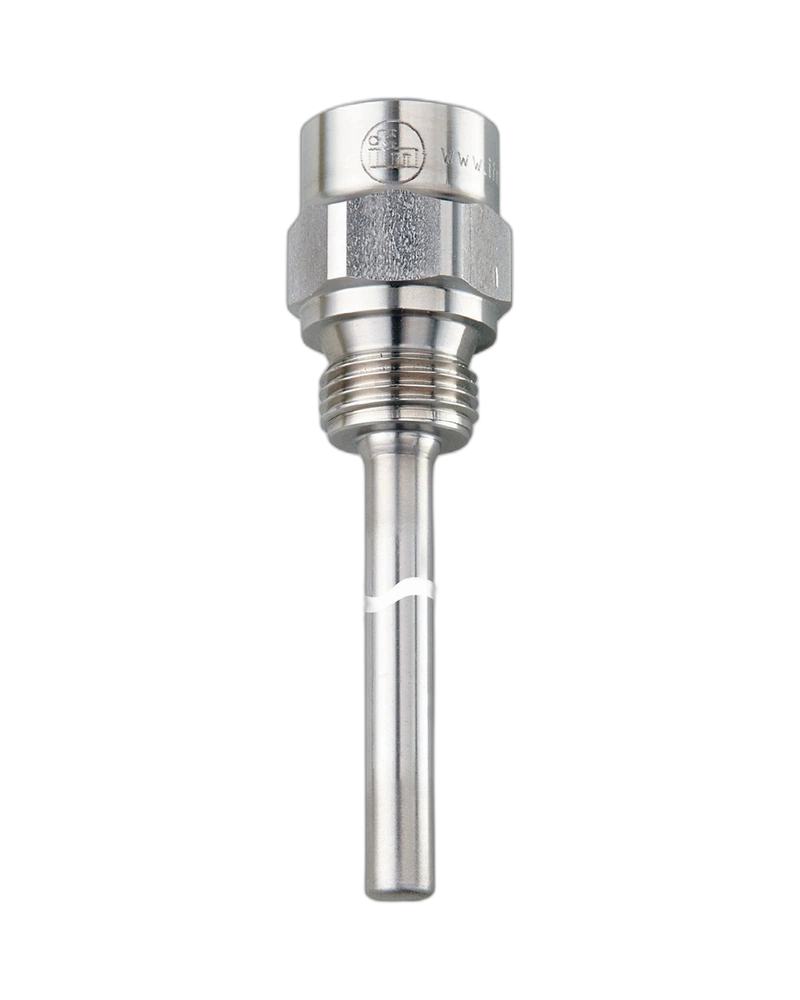

The IFM E37630 thermowell is designed for temperature sensors with a 200 mm installation length and provides extended sensor protection for industrial process applications. It features G1/2 sensor and process connections, a 6 mm sensor diameter and 174 mm installation length. Its 316Ti stainless steel construction and 100 bar pressure rating support durable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37630 is an extended threaded thermowell designed for reliable protection of temperature sensors installed at deeper measurement points.
With a 174 mm installation length and 201 mm bore length, the E37630 supports temperature measurement in larger vessels, tanks and process lines.
The G1/2 sensor and process connections provide a practical threaded connection arrangement for compatible temperature sensors.
The 316Ti stainless steel construction offers durable mechanical protection. The 100 bar pressure rating supports reliable use in pressurised process applications below 250 °C.
Thermowell for temperature sensors
Designed for 200 mm sensor installation length
G1/2 sensor connection
6 mm sensor diameter
G1/2 process connection
174 mm installation length
201 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Extended industrial thermowell design
Industrial process temperature measurement
Large tank temperature monitoring
Pipeline temperature measurement
Process automation
Chemical processing
Machine automation
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37630 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/G1/2/L=200 |
| Sensor Design | EL = 200 mm |
| Sensor Connection | G1/2, Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 174 mm |
| Bore Length | 201 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 155 g |
| Pack Quantity | 1 piece |
