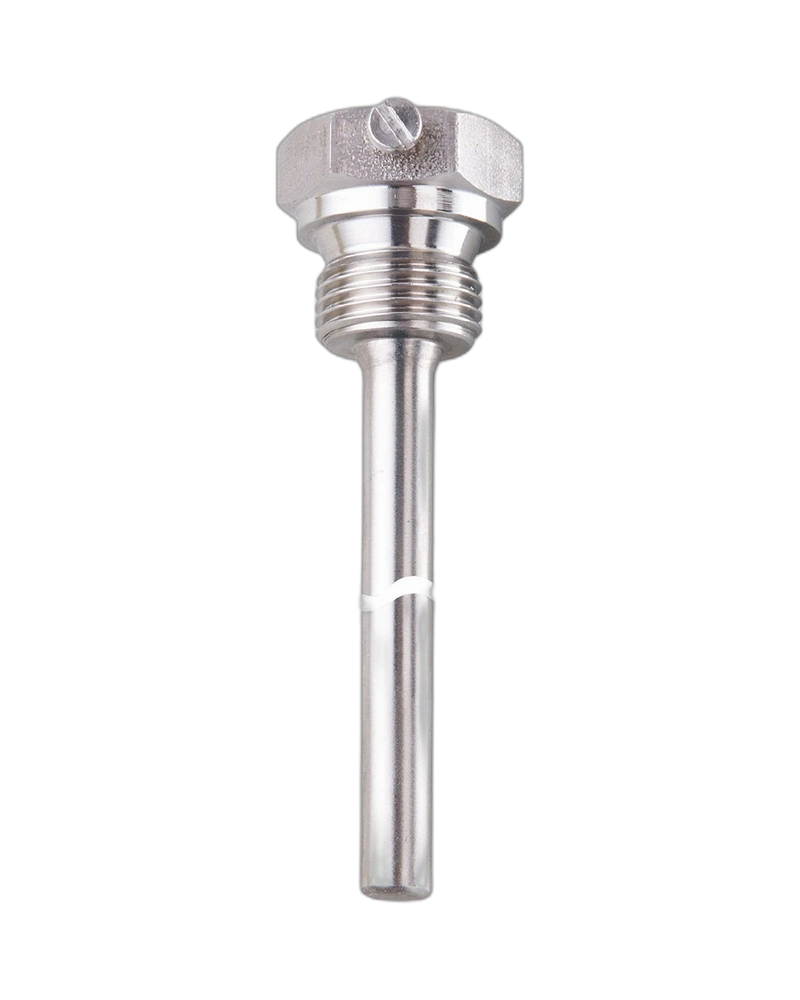

The IFM E37623 thermowell is designed to protect temperature sensors with a 150 mm installation length in industrial process environments. It features a 6 mm sensor connection, G1/2 process connection, 128 mm installation length and 140 mm bore length. The 316Ti stainless steel construction and 100 bar pressure rating provide durable sensor protection for reliable temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37623 is a threaded thermowell designed for compatible temperature sensors requiring a 150 mm installation length.
It helps protect temperature sensors from aggressive process media, high flow velocities and mechanical stresses during operation.
The 6 mm sensor connection and G1/2 process connection provide a simple and reliable installation arrangement for compatible process temperature sensors.
The 316Ti stainless steel housing provides mechanical durability, while the 100 bar pressure rating supports use in demanding industrial process environments below 250 °C.
Thermowell for temperature sensors
Designed for 150 mm sensor installation length
6 mm sensor connection
G1/2 process connection
128 mm installation length
140 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Compact threaded design
Suitable for industrial temperature measurement
Industrial temperature sensing
Process temperature monitoring
Tank temperature measurement
Pipeline temperature measurement
Process automation
Machine automation
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37623 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/ 6mm/L=150 |
| Sensor Design | EL = 150 mm |
| Sensor Connection | Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 128 mm |
| Bore Length | 140 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 115 g |
| Pack Quantity | 1 piece |
