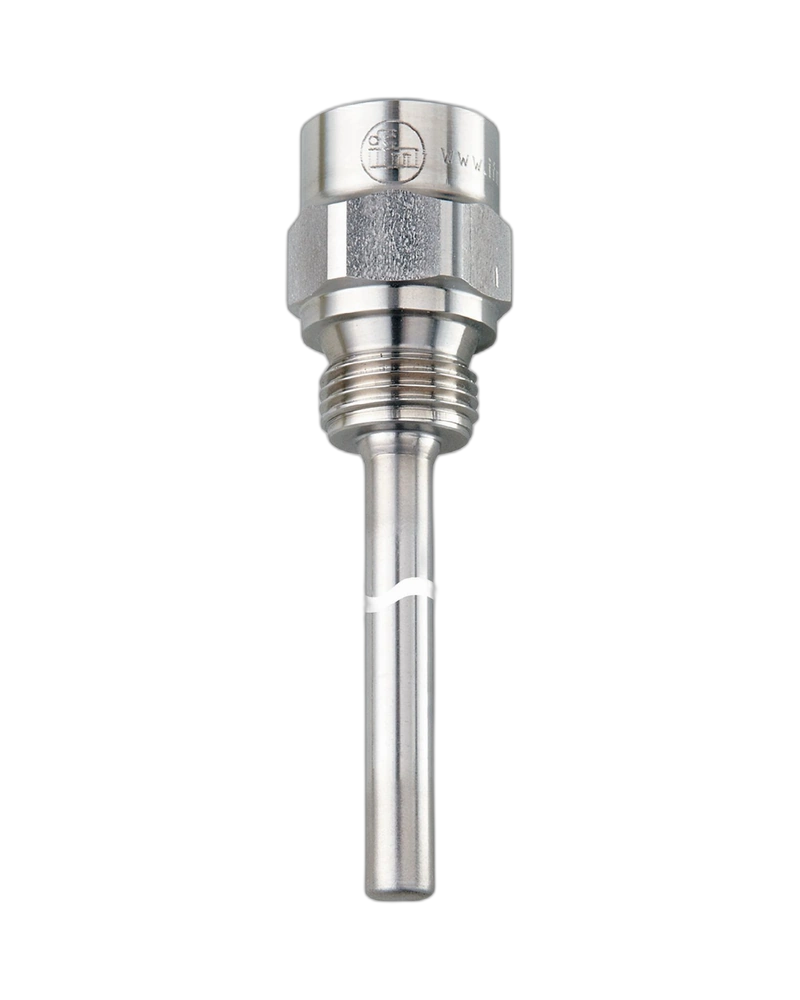

The IFM E37620 thermowell is designed for temperature sensors with a 150 mm installation length. It features G1/2 sensor and process connections, a 6 mm sensor diameter and a 124 mm installation length. Manufactured from 316Ti stainless steel, it provides reliable protection against process conditions with a 100 bar pressure rating and is suitable for industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37620 is a threaded thermowell designed to protect compatible temperature sensors in industrial process and automation systems.
Its 124 mm installation length and 150 mm bore length provide extended reach for temperature measurement inside tanks, pipes and process equipment.
The G1/2 sensor connection and G1/2 process connection allow secure integration with compatible temperature sensors and process equipment.
The 316Ti stainless steel construction provides durable mechanical protection, while the 100 bar pressure rating supports demanding pressurised applications below 250 °C.
Thermowell for temperature sensors
Designed for 150 mm sensor installation length
G1/2 sensor connection
6 mm sensor diameter
G1/2 process connection
124 mm installation length
150 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Suitable for industrial process environments
Process temperature monitoring
Tank temperature measurement
Pipeline temperature sensing
Industrial automation
Process control
Chemical processing
Machine temperature monitoring
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | E37620 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/G1/2/L=150 |
| Sensor Design | EL = 150 mm |
| Sensor Connection | G1/2, Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 124 mm |
| Bore Length | 150 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 143 g |
| Pack Quantity | 1 piece |
