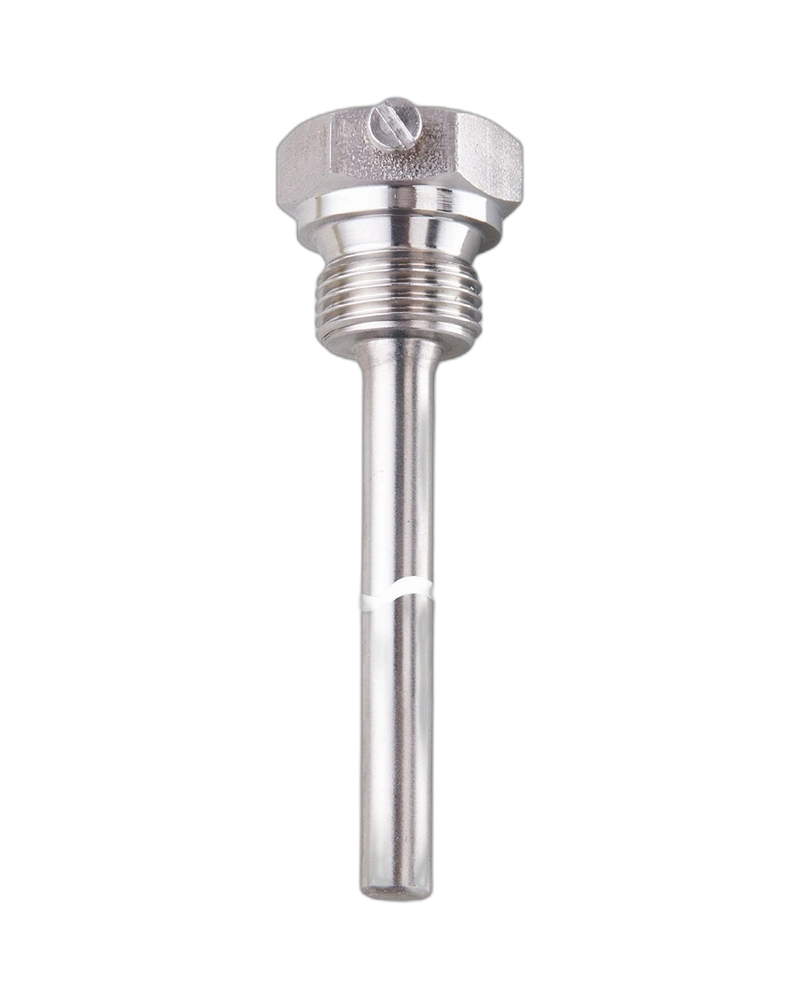

The IFM E37613 thermowell is designed for temperature sensors with a 100 mm installation length and provides reliable protection against aggressive media and high flow velocities. It features a 6 mm sensor connection and G1/2 process connection. Its 316Ti stainless steel construction, 100 bar pressure rating and compact 83 mm installation length make it suitable for industrial process temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37613 is a compact threaded thermowell designed to protect temperature sensors installed in industrial process equipment.
The thermowell helps shield the temperature sensor from aggressive process media, mechanical stress and high flow velocities.
Its G1/2 process connection allows straightforward installation using suitable adapters, while the 6 mm sensor connection accommodates compatible temperature sensors.
The 316Ti stainless steel construction provides durable mechanical protection. The 100 bar pressure rating supports use in pressurised process environments below 250 °C.
Thermowell for temperature sensors
Designed for 100 mm sensor installation length
6 mm sensor connection
G1/2 process connection
83 mm installation length
95 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Compact threaded design
Suitable for demanding industrial environments
Industrial temperature measurement
Process temperature sensing
Tank temperature monitoring
Pipeline temperature monitoring
Process automation
Machine automation
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37613 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/ 6mm/L=100 |
| Sensor Design | EL = 100 mm |
| Sensor Connection | Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 83 mm |
| Bore Length | 95 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 108 g |
| Pack Quantity | 1 piece |
