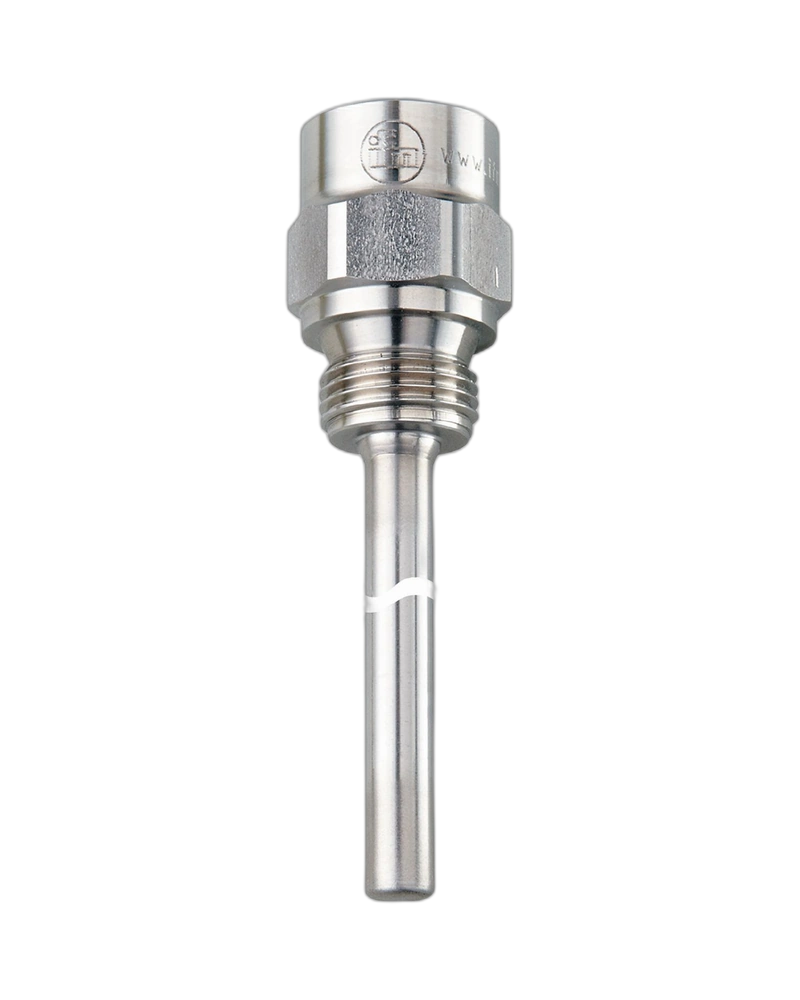

The IFM E37610 thermowell provides reliable protection for temperature sensors with a 100 mm installation length. It features G1/2 sensor and process connections, a 6 mm sensor diameter and a 74 mm installation length. Manufactured from robust 316Ti stainless steel, it offers 100 bar pressure resistance and is designed for demanding industrial process temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37610 is a screw-in thermowell designed to protect compatible temperature sensors while providing a secure process connection for industrial temperature measurement.
The thermowell protects the temperature sensor from aggressive process media and high flow velocities, helping improve sensor durability and measurement reliability.
It features a G1/2 sensor connection and G1/2 process connection, providing a practical threaded installation for compatible temperature sensors.
The 316Ti stainless steel housing provides robust mechanical protection. With a 100 bar pressure rating and an operating condition below 250 °C, it is suitable for demanding process installations.
Thermowell for temperature sensors
Designed for 100 mm sensor installation length
6 mm sensor diameter
G1/2 sensor connection
G1/2 process connection
74 mm installation length
100 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Suitable for industrial process applications
Industrial temperature sensing
Process temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Machine automation
Process control systems
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37610 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/G1/2/L=100 |
| Sensor Design | EL = 100 mm |
| Sensor Connection | G1/2, Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 74 mm |
| Bore Length | 100 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 131 g |
| Pack Quantity | 1 piece |
