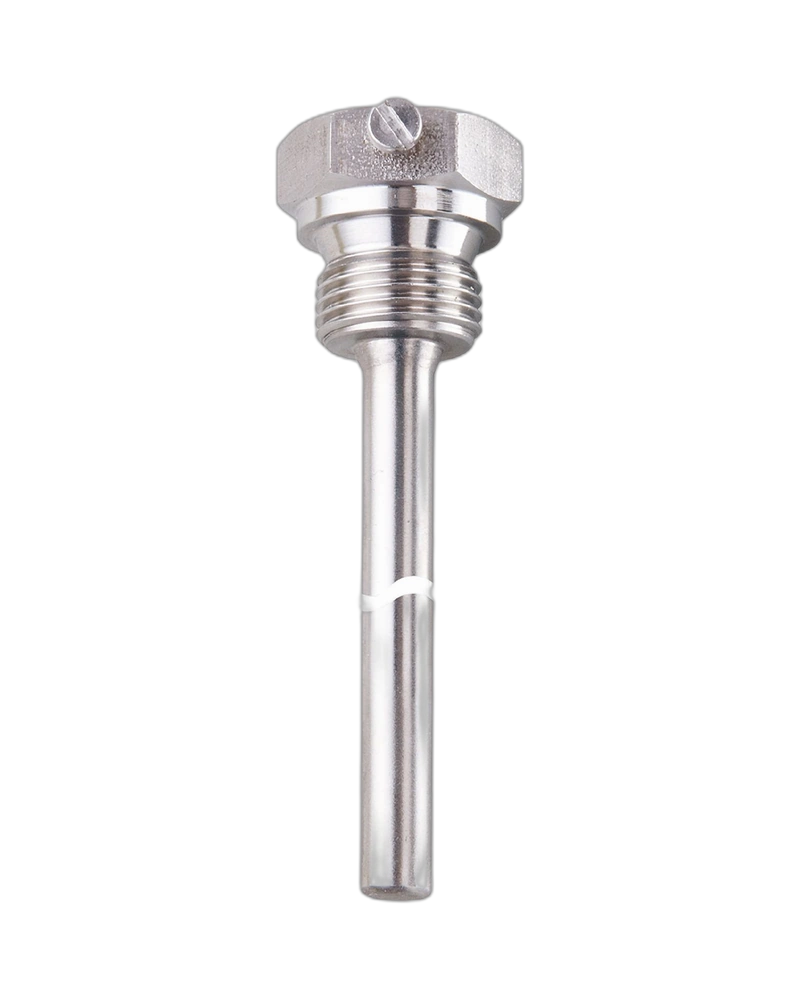

The IFM E37603 thermowell is designed to protect temperature sensors from aggressive media, high flow velocities and mechanical stress. It supports sensors with a 50 mm installation length and features a 6 mm sensor connection with G1/2 process connection. Its robust 316Ti stainless steel construction and 100 bar pressure rating make it suitable for reliable industrial temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37603 is a compact thermowell designed to provide reliable mechanical and process protection for compatible temperature sensors in industrial automation and process measurement applications.
The thermowell creates a protective barrier around the temperature sensor, helping shield the sensing element from aggressive process media and high flow velocities.
With a 33 mm installation length and 45 mm bore length, the E37603 provides a compact solution for temperature measurement where installation space is limited.
The stainless steel 316Ti construction provides durable mechanical protection for demanding industrial environments. The 100 bar pressure rating supports reliable operation in pressurised applications below 250 °C.
Thermowell for temperature sensors
Designed for 50 mm sensor installation length
6 mm sensor connection
G1/2 process connection
33 mm installation length
45 mm bore length
316Ti stainless steel construction
100 bar pressure rating
Suitable for applications below 250 °C
Compact and durable construction
Industrial temperature measurement
Process temperature monitoring
Tank temperature sensing
Pipeline temperature measurement
Machine automation
Process automation systems
Industrial instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37603 |
| Product Type | Thermowell for temperature sensors |
| Model | THERMOWELL, D6/ 6mm/L=50 |
| Sensor Design | EL = 50 mm |
| Sensor Connection | Ø6 mm |
| Process Connection | G1/2 |
| Installation Length | 33 mm |
| Bore Length | 45 mm |
| Material | Stainless steel 316Ti / 1.4571 |
| Pressure Rating | 100 bar / 10 MPa |
| Pressure Temperature Note | Below 250 °C |
| Weight | Approx. 98 g |
| Pack Quantity | 1 piece |
