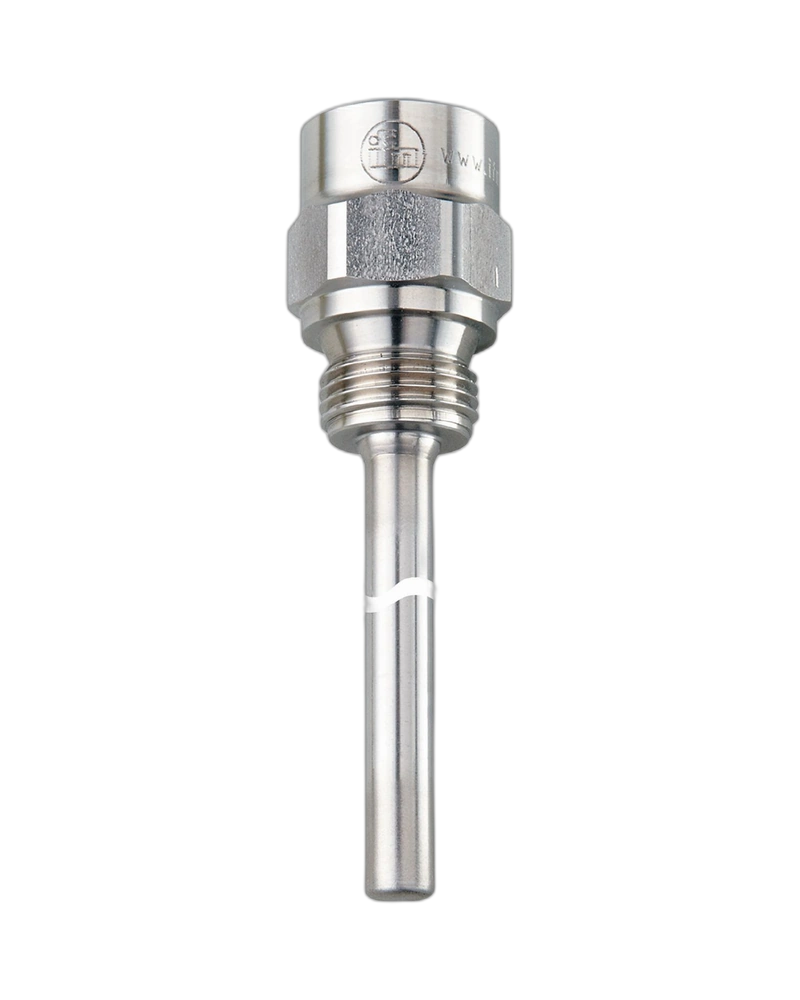

The IFM E37600 thermowell is a compact protective solution for temperature sensors with a 50 mm installation design. It features a 6 mm sensor connection, G1/2 sensor and process connections, and stainless steel 316Ti construction. With a 100 bar pressure rating and 27 mm installation length, it provides reliable sensor protection for industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37600 is a compact thermowell designed to protect compatible temperature sensors in industrial process installations.
Its short 50 mm sensor design and 27 mm installation length make it suitable for applications where installation space is limited.
The thermowell is manufactured from stainless steel 1.4571 / 316Ti, providing durable mechanical protection and corrosion resistance.
With a pressure rating of 100 bar / 10 MPa, the E37600 provides reliable sensor protection in pressurised process applications.
Compact thermowell design
Designed for EL = 50 mm sensors
6 mm sensor diameter
G1/2 sensor connection
G1/2 process connection
Stainless steel 316Ti construction
100 bar pressure rating
27 mm installation length
54 mm bore length
Suitable for compact installations
Industrial temperature measurement
Process temperature monitoring
Compact machinery
Pipeline temperature sensing
Tank temperature measurement
Heating systems
Process automation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37600 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/G1/2/L=50 |
| Sensor Design | EL = 50 mm |
| Pressure Rating | 100 bar / 10 MPa |
| Sensor Connection | G1/2 Ø6 mm |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4571 / 316Ti |
| Installation Length EL | 27 mm |
| Bore Length BL | 54 mm |
| Weight | 119 g |
| Pack Quantity | 1 piece |
| Source | (Ifm Electronic) |
