The IFM E37521 thermowell is designed for temperature sensors with a 150 mm installation design and provides reliable protection in industrial process applications. It features a 6 mm sensor connection, G1/2 sealing cone and G1/2 process connection. Stainless steel 316L construction, a 16 bar pressure rating and Ra < 0.6 µm wetted surface support durable and hygienic temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

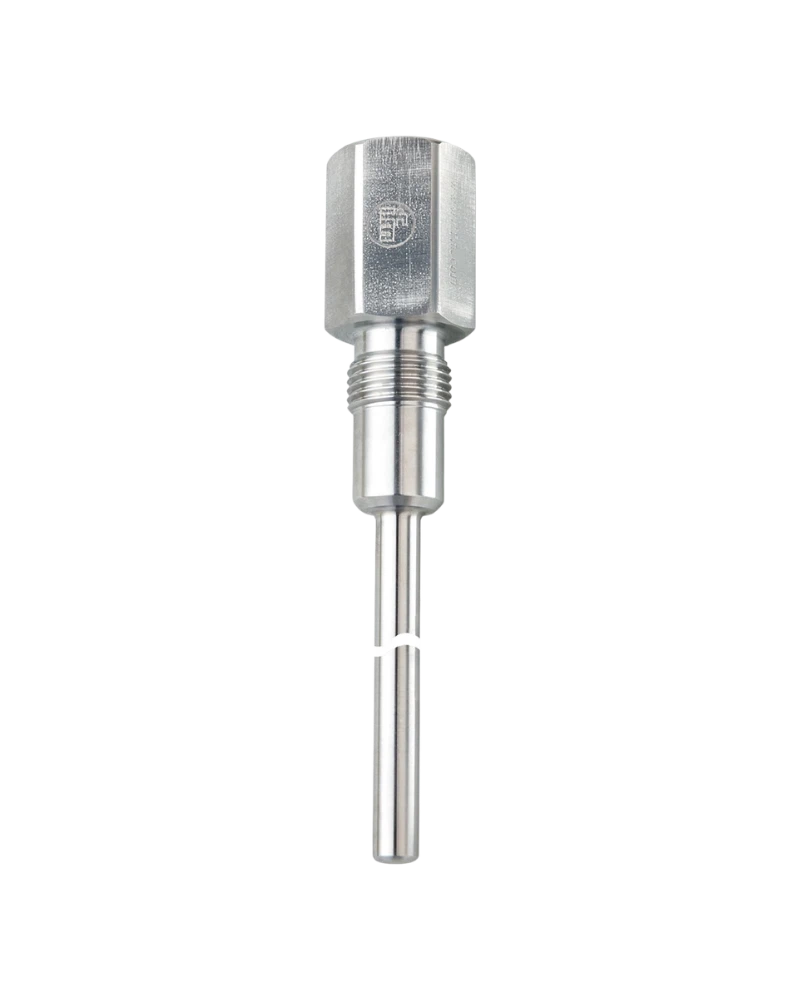

The E37521 is a screw-in thermowell designed to protect compatible temperature sensors installed in industrial and hygienic processes.
Its longer 118 mm installation length and 187 mm bore length support temperature sensing at deeper measurement points.
The 316L stainless steel body and Ra < 0.6 µm wetted surface provide a smooth process-contact surface suitable for hygienic installations.
The G1/2 sealing-cone sensor connection and G1/2 process connection provide reliable integration with compatible temperature sensors and process equipment.
Thermowell for temperature sensors
Designed for EL = 150 mm sensors
6 mm sensor diameter
G1/2 sealing cone sensor connection
G1/2 process connection
Stainless steel 316L construction
16 bar pressure rating
118 mm installation length
187 mm bore length
Ra < 0.6 µm wetted surface
Hygienic temperature measurement
Food and beverage processing
Tank temperature monitoring
Pipeline temperature sensing
Process automation
Industrial temperature measurement
Liquid temperature monitoring
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37521 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/G1/2 conical/L=150 |
| Sensor Design | EL = 150 mm |
| Pressure Rating | 16 bar / 1.6 MPa |
| Sensor Connection | G1/2 sealing cone Ø6 mm |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 118 mm |
| Bore Length BL | 187 mm |
| Wetted Surface | Ra < 0.6 µm |
| Weight | 197.5 g |
| Pack Quantity | 1 piece |
| Source | (Selectum) |
