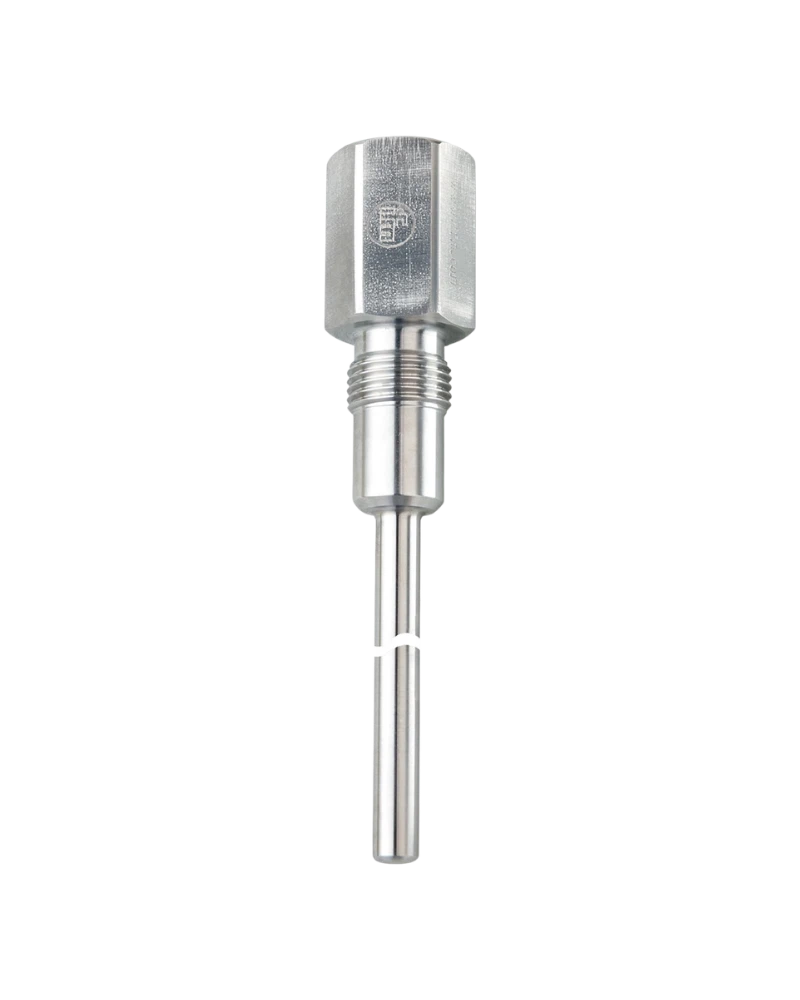

The IFM E37511 thermowell is designed to protect compatible temperature sensors from process media and mechanical influences. It features a 6 mm sensor connection with G1/2 sealing cone and a G1/2 external thread process connection. Its stainless steel 316L construction, 16 bar pressure rating and hygienic Ra < 0.6 µm wetted surface make it suitable for reliable industrial temperature measurement
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37511 is a screw-in thermowell designed for temperature sensors with a 100 mm sensor design.
The thermowell provides a protective barrier around the temperature sensor, helping reduce exposure to process media and mechanical stresses.
The stainless steel 316L construction and Ra < 0.6 µm surface characteristic support applications where clean process-contact surfaces are required.
The G1/2 sealing-cone sensor connection and G1/2 external-thread process connection provide secure integration with compatible temperature measurement systems.
Thermowell for temperature sensors
Designed for EL = 100 mm sensors
6 mm sensor diameter
G1/2 sealing cone sensor connection
G1/2 external thread process connection
Stainless steel 316L construction
16 bar pressure rating
68 mm installation length
137 mm bore length
Ra < 0.6 µm wetted surface
Industrial temperature measurement
Process temperature monitoring
Tank temperature sensing
Pipeline temperature monitoring
Food and beverage equipment
Hygienic process systems
Process automation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37511 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/G1/2 conical/L=100 |
| Sensor Design | EL = 100 mm |
| Pressure Rating | 16 bar / 1.6 MPa |
| Sensor Connection | G1/2 sealing cone Ø6 mm |
| Process Connection | G1/2 external thread sealing cone |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 68 mm |
| Bore Length BL | 137 mm |
| Wetted Surface | Ra < 0.6 µm |
| Weight | 184.3 g |
| Pack Quantity | 1 piece |
| Source |
