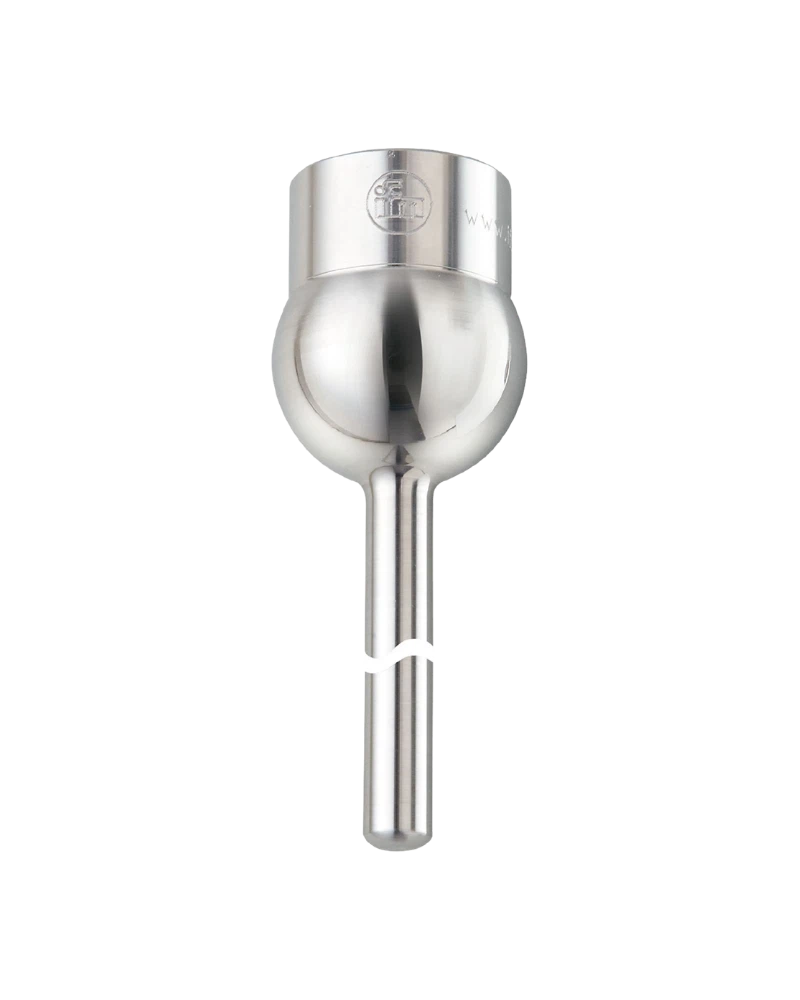

The IFM E37431 welding thermowell is designed to protect temperature sensors in demanding process environments. It features a 6 mm sensor connection, G1/2 sealing cone and Ø34 mm welding adapter. Its stainless steel 316L construction, 300 bar pressure rating and 149 mm installation length provide reliable protection and stable temperature measurement for industrial and hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37431 is a welding thermowell designed for compatible temperature sensors with a 150 mm sensor design.
The thermowell protects the sensing element against aggressive process media and high flow velocities while allowing the sensor to be replaced during operation.
Its 300 bar / 30 MPa pressure rating provides strong protection for demanding process applications.
The 316L stainless steel body and Ra ≤ 0.6 µm wetted surface make the thermowell suitable for hygienic process environments.
Welding thermowell for temperature sensors
Designed for EL = 150 mm sensors
6 mm sensor diameter
G1/2 sealing cone connection
Ø34 mm welding adapter
Stainless steel 316L construction
300 bar pressure rating
149 mm installation length
187 mm bore length
Ra ≤ 0.6 µm wetted surface
Food and beverage processing
Hygienic process systems
Tank temperature measurement
Pipeline temperature monitoring
Industrial process automation
Chemical processing
Process instrumentation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37431 |
| Product Type | Welding thermowell |
| Model | THERMOWELL,D6/WELD-IN/G1/2 conical/L=150 |
| Sensor Design | EL = 150 mm |
| Pressure Rating | 300 bar / 30 MPa |
| Sensor Connection | G1/2 sealing cone Ø6 mm |
| Process Connection | Welding adapter Ø34 mm |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 149 mm |
| Bore Length BL | 187 mm |
| Wetted Surface | Ra ≤ 0.6 µm |
| Weight | 184.7 g |
| Pack Quantity | 1 piece |
| Source | (Selectum) |
