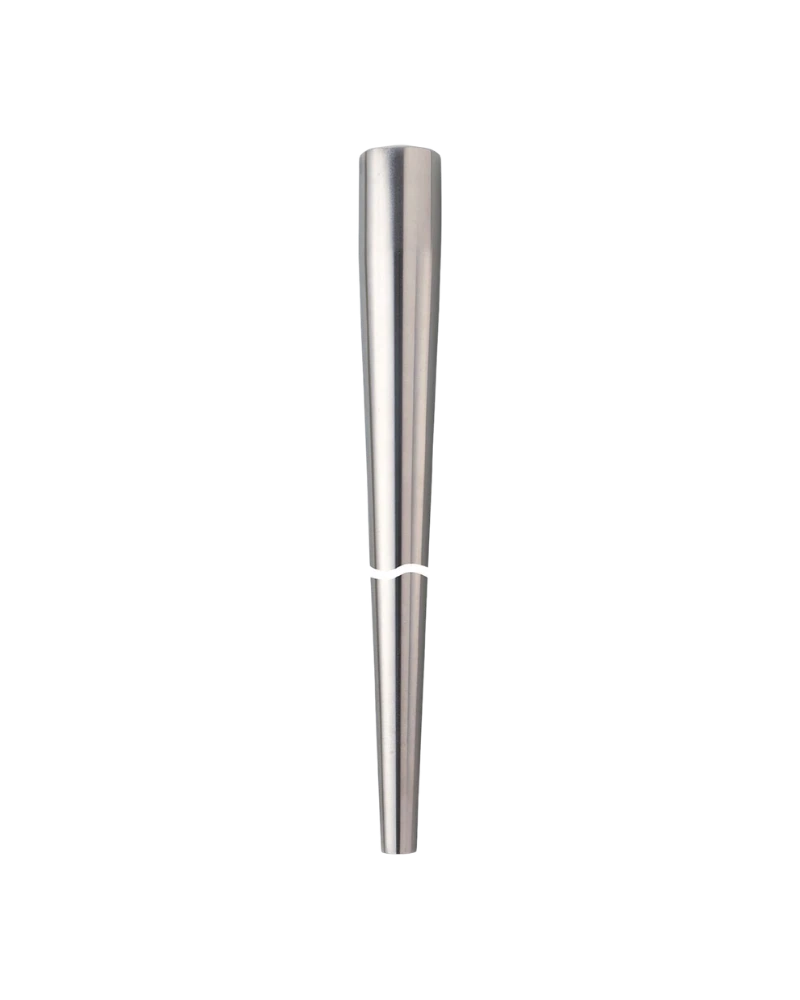

The IFM E37430 welding thermowell is designed for temperature sensors requiring extended process insertion and high mechanical protection. It features a 6 mm sensor connection, Ø38.1 mm welding adapter and 191 mm installation length. Manufactured from stainless steel 316L and rated up to 400 bar, it provides reliable protection in high-pressure industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37430 is an extended welding thermowell designed for compatible temperature sensors with an EL = 300 mm sensor design.
Its 191 mm installation length and 228.6 mm bore length provide extended reach for temperature measurement in larger vessels and process installations.
The thermowell is rated up to 400 bar / 40 MPa, supporting demanding high-pressure process environments.
The stainless steel 316L construction and Ø38.1 mm welding adapter provide durable mechanical protection and secure process installation.
Welding thermowell for temperature sensors
Designed for EL = 300 mm sensors
6 mm sensor diameter
1/2" NPS sensor connection
Suitable for G1/2 and 1/2" NPT
Ø38.1 mm welding adapter
Stainless steel 316L construction
400 bar pressure rating
191 mm installation length
25 m/s maximum permissible flow velocity
High-pressure temperature measurement
Process vessels
Industrial pipelines
Chemical processing
Oil and gas systems
Tank temperature monitoring
Process automation
Industrial temperature sensing
| Specification | Details |
|---|---|
| Product Code | E37430 |
| Product Type | Welding thermowell |
| Model | THERMOWELL, D6/WELD-IN/L=230 |
| Sensor Design | EL = 300 mm |
| Pressure Rating | 400 bar / 40 MPa |
| Sensor Connection | 1/2" NPS Ø6 mm |
| Compatibility | G1/2 and 1/2" NPT |
| Process Connection | Welding adapter Ø38.1 mm |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 191 mm |
| Bore Length BL | 228.6 mm |
| Max. Flow Velocity | 25 m/s |
| Weight | 1236 g |
| Pack Quantity | 1 piece |
| Source | (Selectum) |
