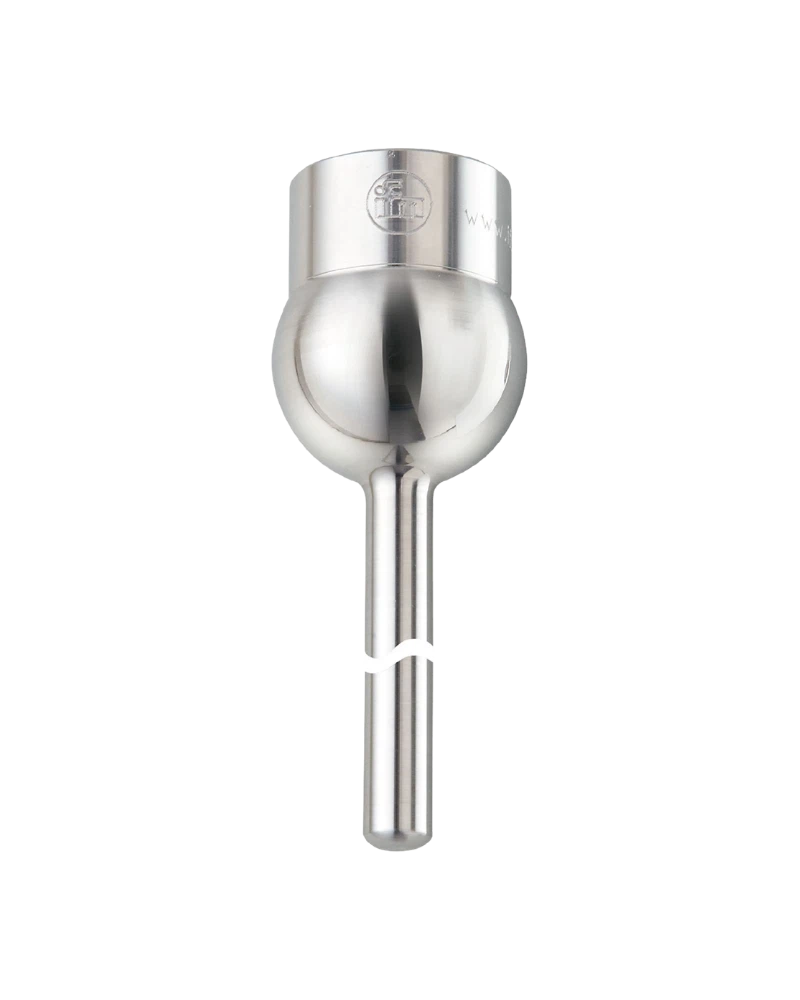

The IFM E37421 welding thermowell provides reliable protection for temperature sensors used in demanding industrial processes. It features a 6 mm sensor connection, G1/2 sealing cone and Ø34 mm welding adapter. With stainless steel 316L construction, a 300 bar pressure rating and hygienic wetted surfaces, it is suitable for process, food and beverage applications requiring durable sensor protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37421 is a welding thermowell designed for temperature sensors with a 100 mm installation design.
It protects the temperature sensor from aggressive media and high process flow velocities while allowing sensor replacement without removing the thermowell from the process.
The thermowell is rated for pressures up to 300 bar / 30 MPa, making it suitable for demanding industrial process environments.
The stainless steel 316L construction and Ra ≤ 0.6 µm wetted surface support hygienic installations where cleanable process-contact surfaces are required.
Welding thermowell for temperature sensors
Designed for EL = 100 mm sensors
6 mm sensor diameter
G1/2 sealing cone connection
Ø34 mm welding adapter
Stainless steel 316L construction
300 bar pressure rating
99 mm installation length
137 mm bore length
Hygienic wetted surface
Food and beverage processing
Hygienic process systems
Tank temperature monitoring
Pipeline temperature measurement
Process automation
Industrial temperature sensing
Chemical processing
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37421 |
| Product Type | Welding thermowell |
| Model | THERMOWELL,D6/WELD-IN/G1/2 conical/L=100 |
| Sensor Design | EL = 100 mm |
| Pressure Rating | 300 bar / 30 MPa |
| Sensor Connection | G1/2 sealing cone, Ø6 mm |
| Process Connection | Welding adapter Ø34 mm |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 99 mm |
| Bore Length BL | 137 mm |
| Wetted Surface | Ra ≤ 0.6 µm |
| Weight | 171.5 g |
| Pack Quantity | 1 piece |
| Source | (Ifm Electronic) |
