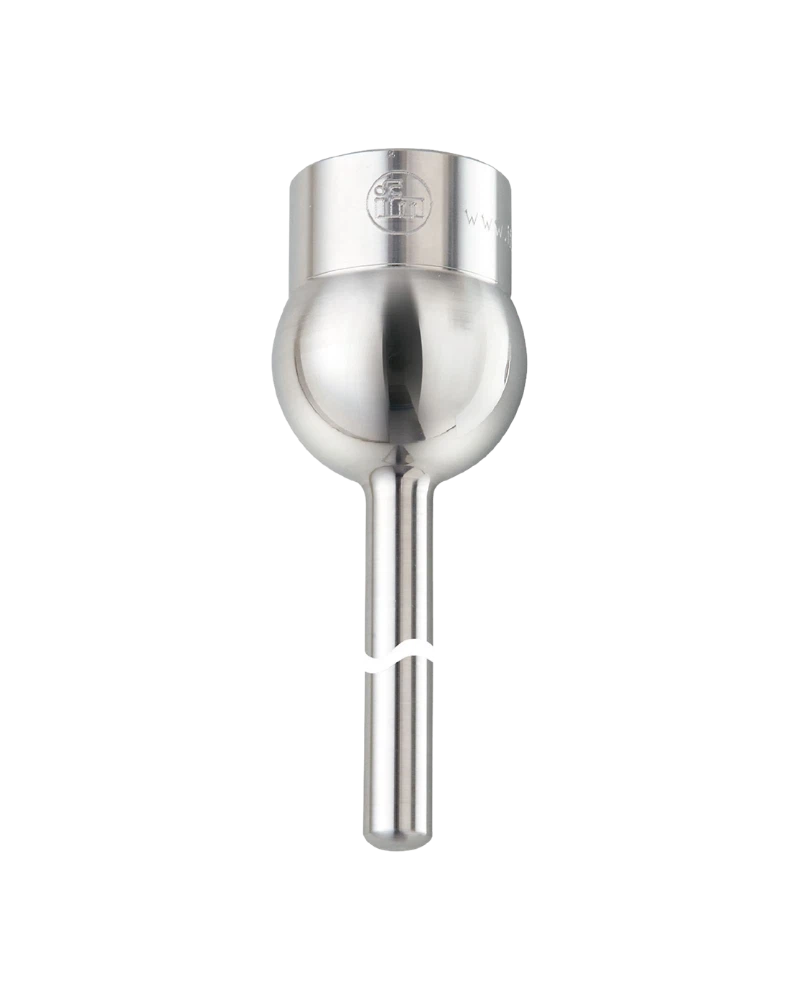

The IFM E37411 welding thermowell is designed to protect temperature sensors from aggressive media, high flow velocities and mechanical stress. It features a 6 mm sensor connection, G1/2 sealing cone and Ø34 mm welding adapter. Manufactured from stainless steel 316L and rated up to 300 bar, it provides a hygienic and robust solution for demanding process temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37411 is a welding thermowell designed for compatible temperature sensors with a 50 mm sensor design.
The thermowell creates a protective barrier around the sensor, helping protect it from aggressive process media and high flow conditions.
With a pressure rating of up to 300 bar / 30 MPa, the E37411 is suitable for demanding pressurised process applications.
The stainless steel 316L construction and wetted surface characteristic of Ra ≤ 0.6 µm support hygienic process installations, including food and beverage applications.
Welding thermowell for temperature sensors
Designed for EL = 50 mm sensors
6 mm sensor diameter
G1/2 sealing cone sensor connection
Ø34 mm welding adapter
Stainless steel 316L construction
300 bar pressure rating
49 mm installation length
87 mm bore length
Ra ≤ 0.6 µm wetted surface
Process temperature measurement
Food and beverage processing
Hygienic process equipment
Tank temperature monitoring
Pipeline temperature monitoring
Industrial process automation
Chemical process applications
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E37411 |
| Product Type | Welding thermowell |
| Model | THERMOWELL,D6/WELD-IN/G1/2 conical/L=50 |
| Sensor Design | EL = 50 mm |
| Pressure Rating | 300 bar / 30 MPa |
| Sensor Connection | G1/2 sealing cone, Ø6 mm |
| Process Connection | Welding adapter Ø34 mm |
| Material | Stainless steel 1.4404 / 316L |
| Installation Length EL | 49 mm |
| Bore Length BL | 87 mm |
| Wetted Surface | Ra ≤ 0.6 µm |
| Weight | 159.3 g |
| Pack Quantity | 1 piece |
| Source | (Ifm Electronic) |
