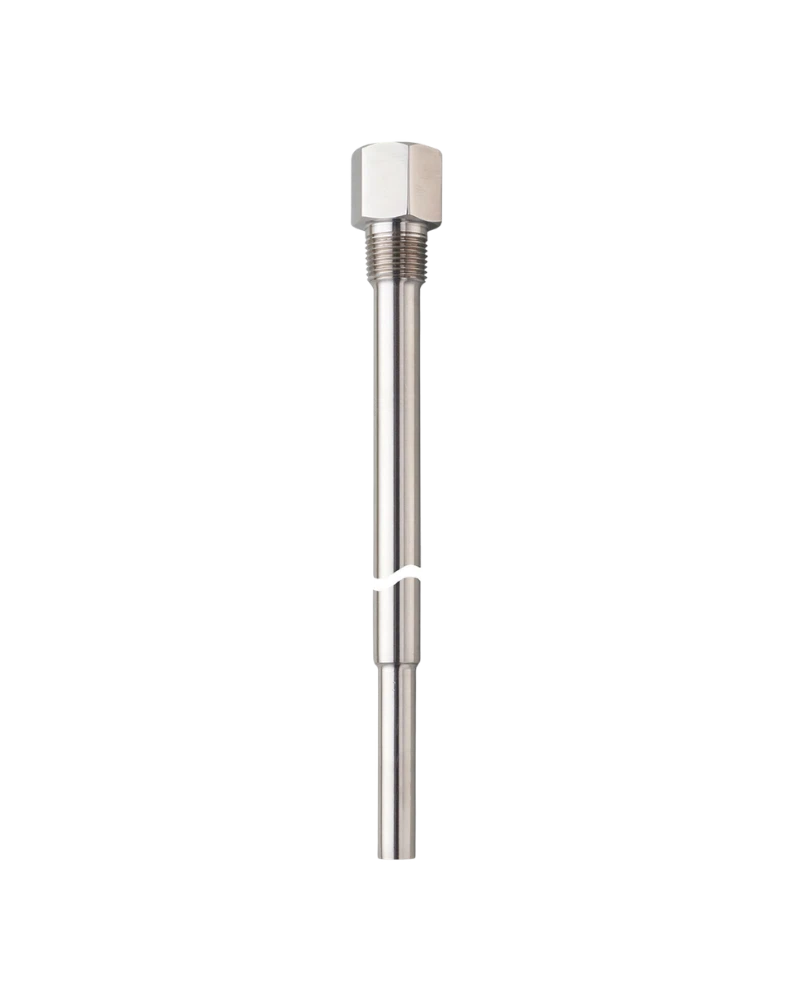

The IFM E37250 thermowell is designed for extended-depth temperature measurement in demanding industrial processes. It features a 6 mm sensor diameter, 1/2" NPS sensor connection and 1/2" NPT process connection. Its stainless steel 316L construction, 400 bar pressure rating and 277 mm installation length provide durable protection for compatible temperature sensors in high-pressure applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37250 is a long thermowell designed to protect temperature sensors installed in deep or pressurised industrial process locations.
The 300 mm designation and 277 mm installation length provide extended sensor insertion for deeper tanks, vessels and process lines.
With a pressure rating of 400 bar / 40 MPa, the thermowell is designed for demanding high-pressure process environments.
The stainless steel 1.4404 / 316L body provides mechanical strength and corrosion resistance, while the 1/2" NPT process connection supports secure installation.
Long-length thermowell
Designed for temperature sensors
6 mm sensor diameter
1/2" NPS sensor connection
1/2" NPT process connection
Stainless steel 316L construction
400 bar pressure rating
277 mm installation length
304.8 mm bore length
6 m/s maximum permissible flow velocity
Deep tank temperature measurement
Process vessel monitoring
High-pressure temperature measurement
Industrial pipelines
Chemical process systems
Oil and gas equipment
Fluid temperature monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E37250 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2"NPT/L=300 |
| Sensor Design | EL = 350 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | 1/2" NPS, suitable for G1/2 and 1/2" NPT |
| Process Connection | 1/2" NPT |
| Installation Length EL | 277 mm |
| Bore Length BL | 304.8 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 400 bar / 40 MPa |
| Max. Flow Velocity | 6 m/s |
| Weight | 461.5 g |
| Pack Quantity | 1 piece |
