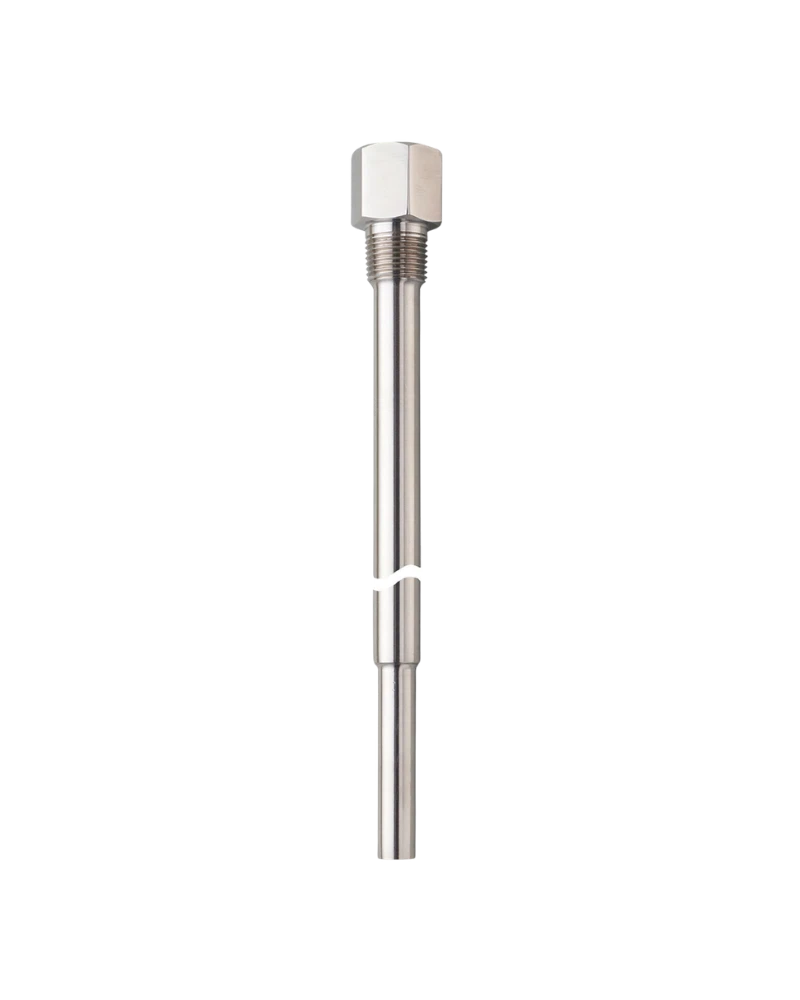

The IFM E37230 thermowell is a long-length, high-pressure protection solution for compatible temperature sensors. It features a 6 mm sensor diameter, 1/2" NPS sensor connection and 1/2" NPT process connection. With stainless steel 316L construction, 400 bar pressure rating and a 201 mm installation length, it is suitable for demanding industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37230 is designed for temperature sensors requiring an extended insertion arrangement in industrial process equipment.
Its 230 mm product designation and 201 mm installation length provide extended reach for temperature measurement in deeper process locations.
The thermowell is rated up to 400 bar / 40 MPa, providing strong protection for temperature sensors in pressurised process systems.
Stainless steel 1.4404 / 316L construction provides durable performance, while the 1/2" NPT process connection supports secure installation.
Long-length thermowell design
Designed for temperature sensors
6 mm sensor diameter
1/2" NPS sensor connection
1/2" NPT process connection
Stainless steel 316L construction
400 bar pressure rating
201 mm installation length
228.6 mm bore length
12 m/s maximum permissible flow velocity
Deep process temperature measurement
High-pressure temperature monitoring
Industrial pipelines
Process vessels
Chemical processing
Oil and gas applications
Fluid temperature measurement
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E37230 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2"NPT/L=230 |
| Sensor Design | EL = 300 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | 1/2" NPS |
| Process Connection | 1/2" NPT |
| Installation Length EL | 201 mm |
| Bore Length BL | 228.6 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 400 bar / 40 MPa |
| Max. Flow Velocity | 12 m/s |
| Weight | 354.6 g |
| Pack Quantity | 1 piece |
