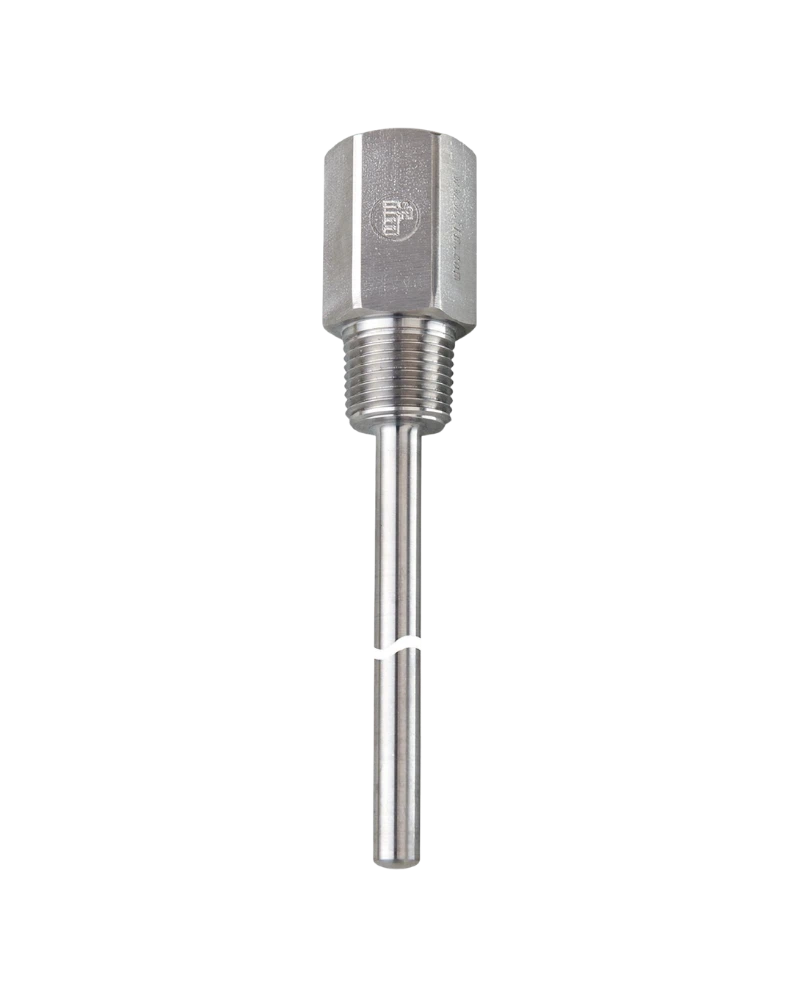

The IFM E37221 thermowell is designed for temperature sensors with a 150 mm installation design and provides reliable protection in industrial processes. It features a 6 mm sensor diameter, G1/2 sealing-cone connection and 1/2" NPT process connection. Its stainless steel 316L construction and 16 bar pressure rating provide durable sensor protection for temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37221 is a thermowell designed to protect compatible temperature sensors from direct exposure to process conditions.
The thermowell provides a protective barrier around the sensing element, helping improve sensor reliability in industrial process environments.
Its stainless steel 1.4404 / 316L construction provides good mechanical durability and corrosion resistance.
The G1/2 sealing-cone sensor connection and 1/2" NPT process connection provide secure integration with compatible temperature measurement equipment.
Thermowell for temperature sensors
150 mm sensor design
6 mm sensor diameter
G1/2 sealing-cone connection
1/2" NPT process connection
Stainless steel 316L construction
16 bar pressure rating
144 mm installation length
187 mm bore length
Compact process installation
Industrial temperature measurement
Process temperature monitoring
Tank temperature sensing
Pipeline temperature monitoring
Fluid temperature measurement
Machine temperature monitoring
Heating and cooling systems
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E37221 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2 NPT/L=150 |
| Sensor Design | EL = 150 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | 1/2" NPT |
| Installation Length EL | 144 mm |
| Bore Length BL | 187 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | 175 g |
| Pack Quantity | 1 piece |
