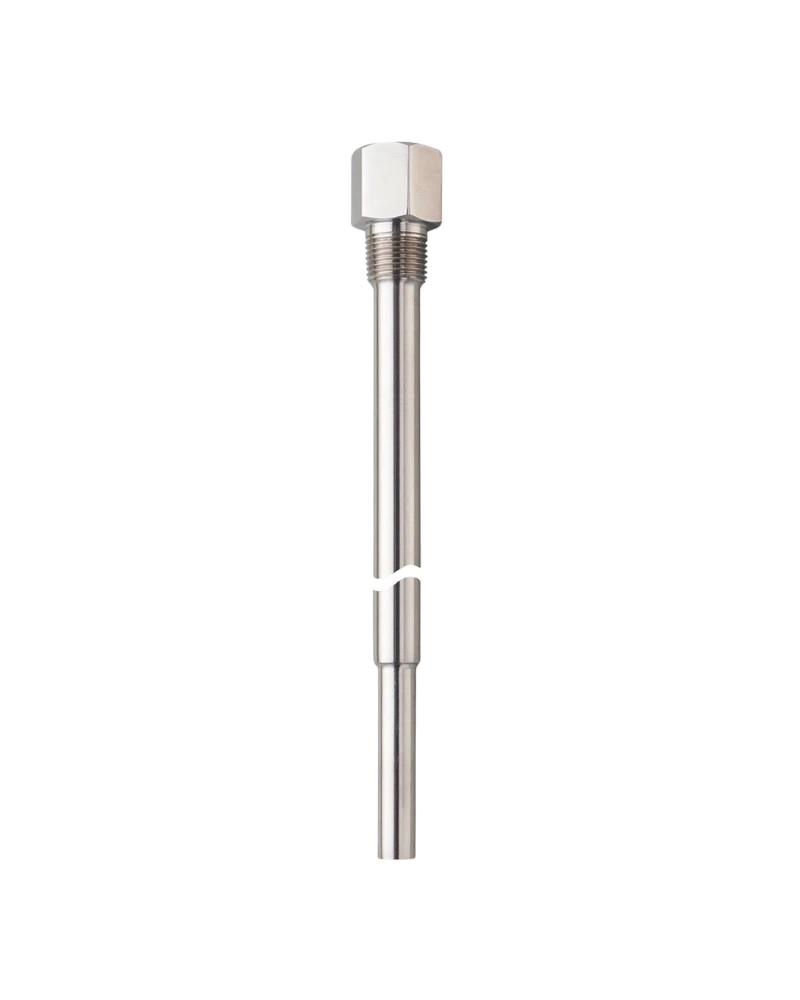

The IFM E37220 thermowell is designed for temperature sensors with a 150 mm installation design and provides protection in high-pressure process environments. It features a 6 mm sensor diameter, 1/2" NPS sensor connection and 1/2" NPT process connection. Stainless steel 316L construction, 400 bar pressure rating and a 25 m/s maximum flow velocity support reliable industrial temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37220 is a high-pressure thermowell designed for temperature sensors used in industrial process applications.
The 400 bar pressure rating makes this thermowell suitable for demanding process installations where strong mechanical protection is required.
The 6 mm sensor diameter and 1/2" NPS connection are designed for compatible temperature sensors with a 150 mm installation length.
The 1/2" NPT process connection and stainless steel 316L construction provide a secure and durable solution for process temperature measurement.
Thermowell for temperature sensors
150 mm sensor installation design
6 mm sensor diameter
1/2" NPS sensor connection
1/2" NPT process connection
Stainless steel 316L construction
400 bar pressure rating
25 m/s maximum permissible flow velocity
125 mm installation length
152.4 mm bore length
High-pressure temperature measurement
Industrial process monitoring
Pipeline temperature measurement
Process vessels
Fluid temperature monitoring
Chemical processing
Oil and gas systems
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E37220 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2"NPT/L=150 |
| Sensor Design | EL = 150 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | 1/2" NPS |
| Process Connection | 1/2" NPT |
| Installation Length EL | 125 mm |
| Bore Length BL | 152.4 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 400 bar / 40 MPa |
| Max. Flow Velocity | 25 m/s |
| Weight | 247.5 g |
| Pack Quantity | 1 piece |
