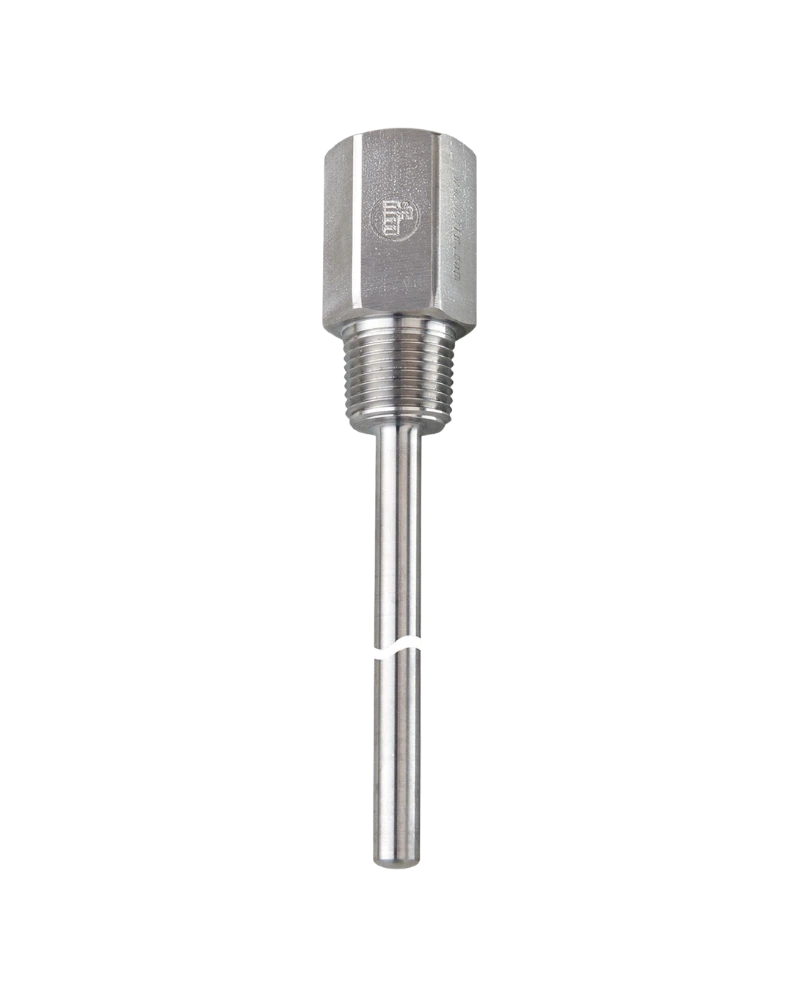

The IFM E37211 thermowell provides reliable protection for temperature sensors installed in industrial process systems. It features a 6 mm sensor diameter, G1/2 sealing-cone sensor connection and 1/2" NPT process connection. Manufactured from stainless steel 316L and designed for 100 mm sensor installations, it provides a robust solution for process temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37211 is a compact thermowell designed to protect temperature sensors against process media and mechanical influences.
The protective construction allows compatible temperature sensors to be replaced while helping maintain process protection.
The 316L stainless steel body provides durable performance and corrosion resistance for industrial process environments.
The G1/2 sealing-cone sensor connection and 1/2" NPT process connection provide a practical installation arrangement for compatible temperature sensors.
Thermowell for temperature sensors
6 mm sensor diameter
100 mm sensor design
G1/2 sealing-cone sensor connection
1/2" NPT process connection
Stainless steel 316L construction
16 bar pressure rating
94 mm installation length
137 mm bore length
Compact industrial design
Industrial temperature measurement
Process temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Machine temperature sensing
Heating systems
Cooling systems
Process automation
| Specification | Details |
|---|---|
| Product Code | E37211 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2 NPT/L=100 |
| Sensor Design | EL = 100 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | 1/2" NPT |
| Installation Length EL | 94 mm |
| Bore Length BL | 137 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar |
| Weight | 164.6 g |
| Pack Quantity | 1 piece |
