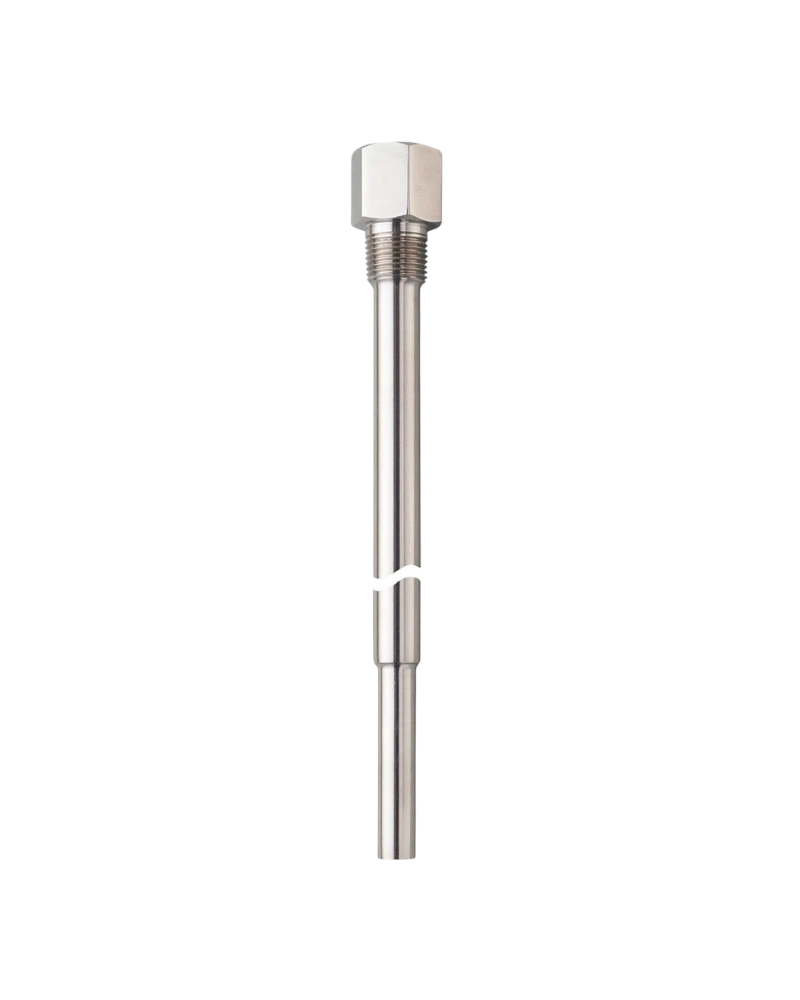

The IFM E37210 thermowell is designed to protect temperature sensors used in demanding industrial processes. It features a 6 mm sensor diameter, 1/2" NPT process connection and a design for sensors with 100 mm installation length. Stainless steel 316L construction, 400 bar pressure resistance and high flow capability make it suitable for reliable temperature measurement in pressurised applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E37210 is a high-pressure thermowell designed to protect temperature sensors from aggressive media, high flow velocities and mechanical stresses.
With a pressure rating of up to 400 bar / 40 MPa, the thermowell is suitable for demanding pressurised process applications.
The thermowell is manufactured from stainless steel 1.4404 / 316L, providing robust mechanical strength and corrosion resistance.
The 1/2" NPT process connection and 1/2" NPS sensor connection provide a secure installation arrangement. The design is intended for temperature sensors with EL = 100 mm.
Thermowell for temperature sensors
6 mm sensor diameter
100 mm sensor installation design
1/2" NPS sensor connection
1/2" NPT process connection
Stainless steel 316L construction
400 bar pressure rating
45 m/s maximum permissible flow velocity
High-pressure sensor protection
Suitable for demanding industrial processes
High-pressure temperature measurement
Pipeline temperature monitoring
Process vessels
Industrial fluid systems
Chemical process applications
Oil and gas equipment
Process automation
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | E37210 |
| Product Type | Thermowell |
| Model | THERMOWELL, D6/1/2"NPT/L=100 |
| Sensor Design | EL = 100 mm |
| Sensor Diameter | Ø6 mm |
| Sensor Connection | 1/2" NPS |
| Process Connection | 1/2" NPT |
| Installation Length EL | 74 mm |
| Bore Length BL | 101.6 mm |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 400 bar / 40 MPa |
| Max. Flow Velocity | 45 m/s |
| Weight | Approx. 179–180.5 g |
| Pack Quantity | 1 piece |
