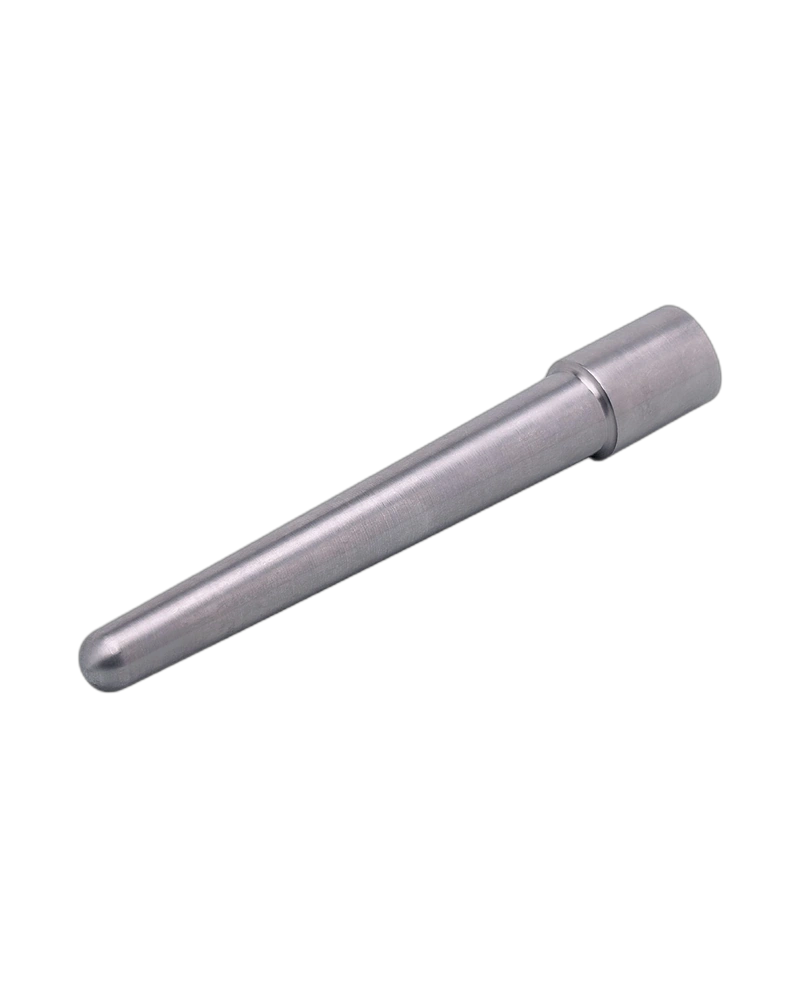

The IFM E35220 welding thermowell is designed for temperature sensors requiring a longer probe length and secure welded process installation. It provides a G1/2 sensor connection, 10 mm diameter and 173 mm probe length. Manufactured from stainless steel 316Ti with a Ø30 mm welding adapter and 100 bar pressure rating, it is suitable for demanding industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35220 provides a robust protective housing for compatible temperature sensors used in industrial process applications.
Its 173 mm probe length allows the sensing element to reach deeper into tanks, vessels and process lines for effective temperature measurement.
The Ø30 mm welding adapter provides a secure permanent installation method for suitable process equipment.
The thermowell is manufactured from stainless steel 1.4571 / 316Ti and is rated for pressures up to 100 bar, supporting demanding process environments.
Welding thermowell for temperature sensors
G1/2 sensor connection
Ø10 mm diameter
173 mm probe length
Ø30 mm welding adapter
Stainless steel 316Ti construction
100 bar pressure rating
Robust welded installation
Smooth wetted surface
Suitable for industrial processes
Deep process temperature measurement
Tank temperature monitoring
Vessel temperature monitoring
Pipeline temperature measurement
Industrial heating systems
Process automation
Food and process equipment
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E35220 |
| Product Type | Welding thermowell |
| Model | WELDING THERMOWELL G1/2 |
| Probe Length | 173 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | Welding adapter Ø30 mm |
| Material | Stainless steel 1.4571 / 316Ti |
| Pressure Rating | 100 bar |
| Wetted Surface | Ra < 0.6 |
| Weight | 505 g |
| Pack Quantity | 1 piece |
