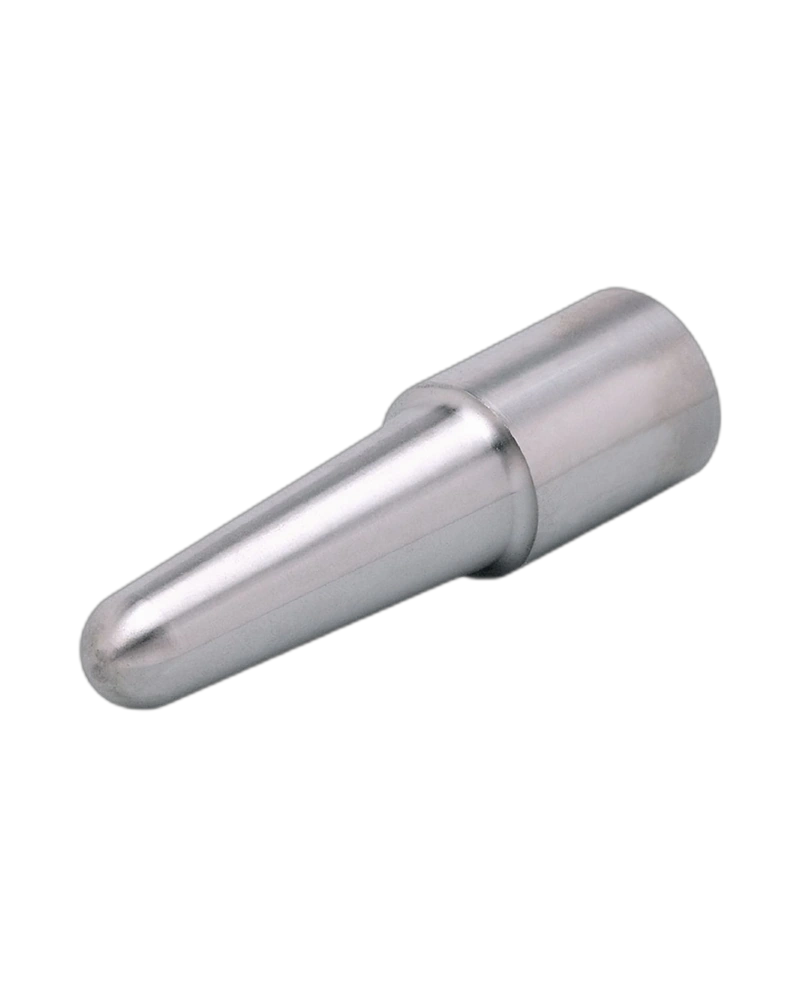

The IFM E35210 welding thermowell is designed for secure installation and protection of temperature sensors in industrial processes. It features a G1/2 sensor connection, 10 mm diameter and a 73 mm probe length. Its stainless steel 316Ti construction and Ø30 mm welding adapter provide a robust process connection for applications requiring reliable temperature measurement and sensor protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35210 is a welding thermowell designed to provide mechanical and process protection for compatible temperature sensors.
The Ø30 mm welding adapter enables the thermowell to be permanently integrated into suitable process equipment and piping.
The thermowell protects the temperature sensor from direct contact with process media, helping support reliable measurement in demanding applications.
The wetted parts have a surface characteristic of Ra < 0.6, supporting applications where smooth process-contact surfaces are important.
Welding thermowell for temperature sensors
G1/2 sensor connection
Ø10 mm sensor diameter
73 mm probe length
Ø30 mm welding adapter
Stainless steel 316Ti construction
100 bar pressure rating
Robust welded process connection
Smooth wetted surface
Suitable for industrial process applications
Industrial temperature measurement
Process temperature monitoring
Pipeline temperature sensing
Tank and vessel temperature measurement
Food and process equipment
Industrial heating systems
Process automation
Temperature sensor protection
| Specification | Details |
|---|---|
| Product Code | E35210 |
| Product Type | Welding thermowell |
| Model | WELDING THERMOWELL G1/2 |
| Sensor Design | EL = 100 mm |
| Probe Length | 73 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | Welding adapter Ø30 mm |
| Material | Stainless steel 1.4571 / 316Ti |
| Pressure Rating | 100 bar |
| Wetted Surface | Ra < 0.6 |
| Weight | 314.9 g |
| Pack Quantity | 1 piece |
