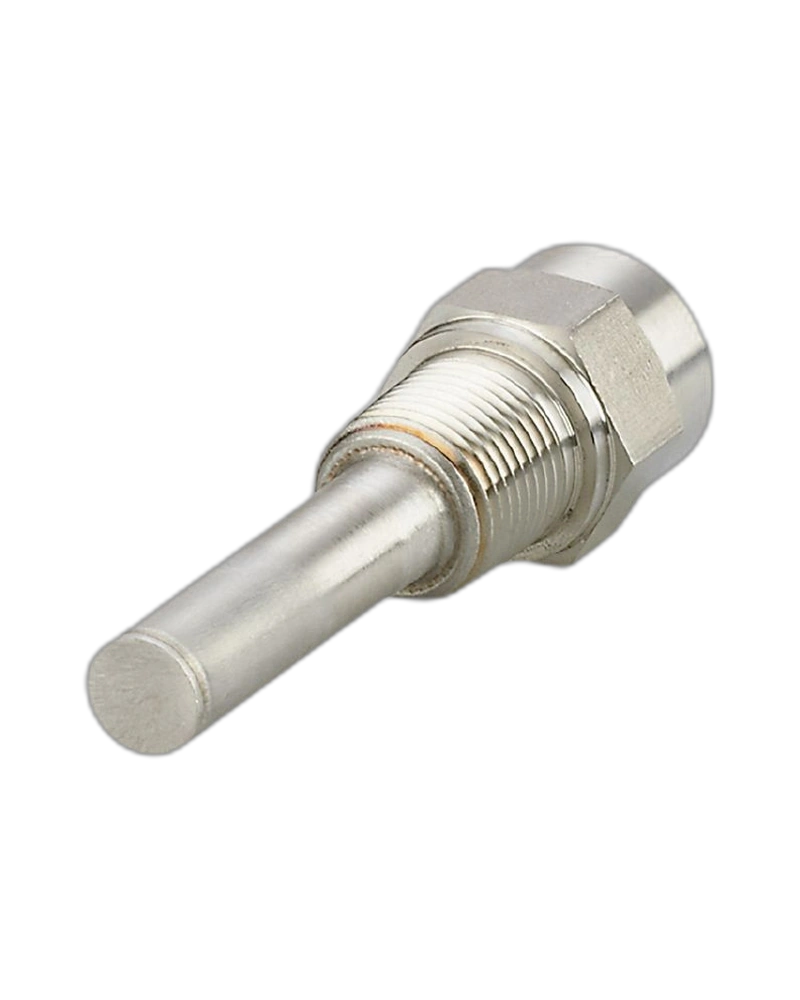

The IFM E35110 thermowell provides reliable protection for temperature sensors installed in industrial processes. It features a 10 mm diameter, 100 mm sensor installation design and 1/2" NPT sensor and process connections. Manufactured from stainless steel 316Ti, it protects the sensor from aggressive media and process conditions while supporting pressure ratings up to 16 bar.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35110 is a thermowell designed to protect compatible temperature sensors from direct exposure to process media and mechanical stresses.
The thermowell creates a protective barrier around the temperature sensor, helping extend sensor service life in demanding process environments.
The body is manufactured from stainless steel 1.4571 / 316Ti, providing durable mechanical performance and corrosion resistance for industrial applications.
The 1/2" NPT sensor and process connections allow secure installation in compatible process systems. The design is intended for temperature sensors with an EL of 100 mm.
Designed for temperature sensors
100 mm sensor installation design
10 mm diameter
1/2" NPT sensor connection
1/2" NPT process connection
Stainless steel 316Ti construction
16 bar pressure rating
73 mm probe length
Robust sensor protection
Suitable for industrial process measurement
Industrial temperature measurement
Process temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Machine temperature monitoring
Heating and cooling systems
Process automation
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | E35110 |
| Product Type | Thermowell |
| Model | THERMOWELL D10/NPT1/2/L=100 |
| Sensor Design | EL = 100 mm |
| Probe Length | 72 mm |
| Diameter | Ø10 mm |
| Sensor Connection | 1/2" NPT |
| Process Connection | 1/2" NPT |
| Material | Stainless steel 1.4571 / 316Ti |
| Pressure Rating | 16 bar |
| Weight | 120 g |
| Pack Quantity | 1 piece |
