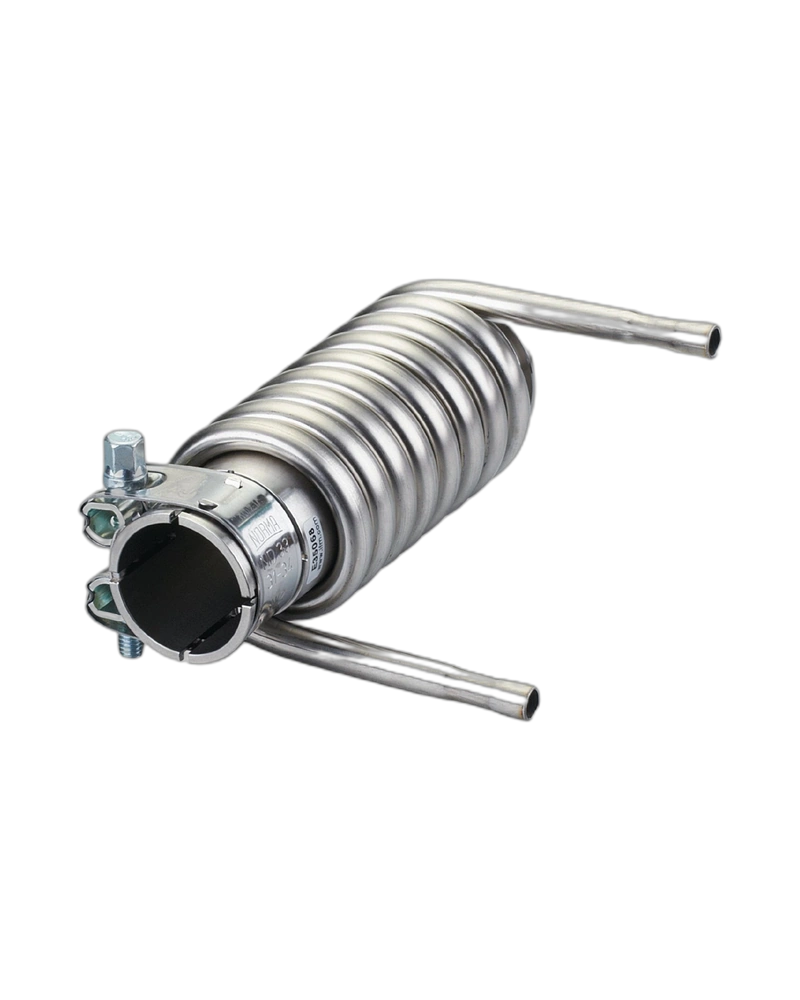

The IFM E35068 cooling jacket is designed to protect compatible M30 infrared temperature sensors when operating in high-temperature environments. It supports efficient sensor cooling using either water or compressed air and has a pressure rating of 6 bar. Its stainless steel 304 construction provides durable protection for demanding industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35068 is a cooling accessory designed for compatible TWxxxx infrared temperature sensors with an M30 sensor design. It helps maintain suitable sensor operating conditions in high-temperature applications.
The cooling jacket allows water or compressed air to be used as the coolant, helping reduce the temperature around the infrared sensor and supporting reliable operation.
The jacket is manufactured from stainless steel 304 / 1.4301, providing durable mechanical protection and suitability for industrial environments.
With a pressure rating of up to 6 bar / 0.6 MPa, the E35068 is suitable for demanding installations where effective cooling and sensor protection are required.
Designed for infrared temperature sensors
Suitable for TWxxxx sensors
M30 sensor design
Efficient sensor cooling
Supports water cooling
Supports compressed-air cooling
6 bar pressure rating
Stainless steel 304 construction
Suitable for high-temperature applications
Robust industrial design
High-temperature temperature measurement
Infrared temperature sensing
Industrial furnace monitoring
Metal processing
Hot-object measurement
Industrial heating systems
Process temperature monitoring
Sensor protection in high-temperature areas
| Specification | Details |
|---|---|
| Product Code | E35068 |
| Product Type | Cooling jacket |
| Model | COOLING JACKET |
| Application | Infrared temperature sensors |
| Compatible Sensor Design | TWxxxx, M30 |
| Cooling Medium | Water or compressed air |
| Pressure Rating | 6 bar / 0.6 MPa |
| Material | Stainless steel 304 / 1.4301 |
| Weight | 493.5 g |
| Pack Quantity | 1 piece |
