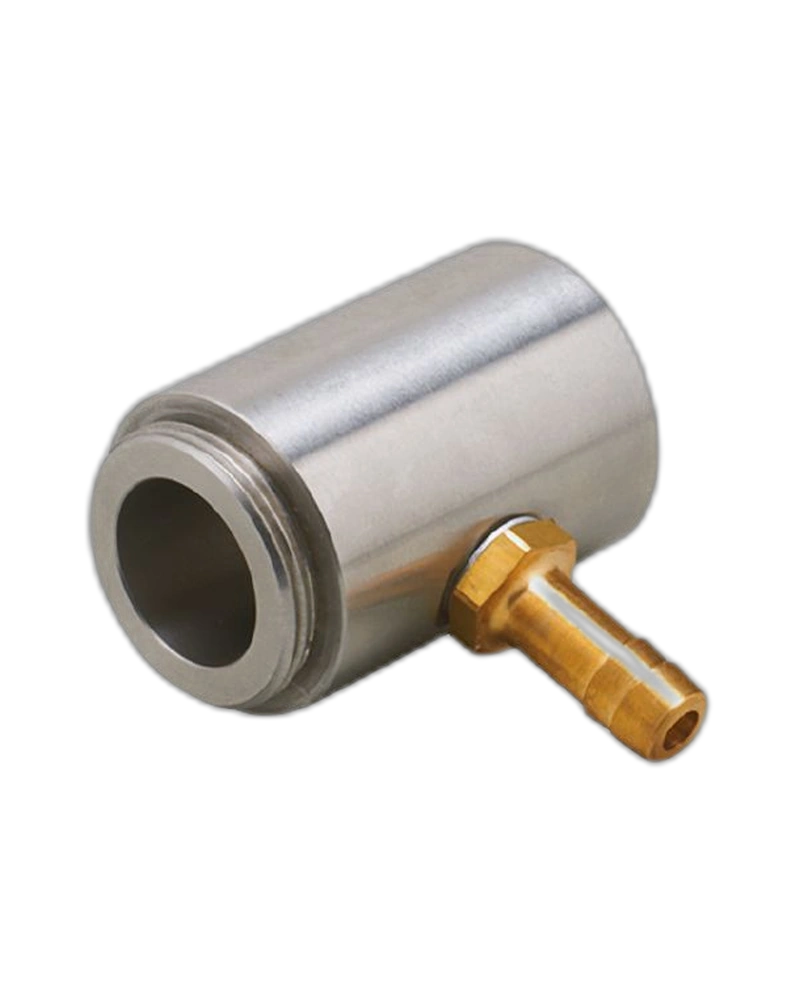

The IFM E35063 air purge is designed to protect the lens of compatible M30 infrared temperature sensors from dirt and contamination. It uses a tube nozzle suitable for tubing with an 8–9 mm bore and is manufactured from stainless steel, brass and aluminium sealing components. The accessory helps maintain a clean optical path for reliable non-contact temperature measurement in dusty industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35063 is an air purge accessory designed for compatible TWxxxx infrared temperature sensors with M30 housing design.
The accessory directs an air supply around the sensor optics to help prevent dust, dirt and process contamination from reaching the lens.
The air purge uses stainless steel 303, brass and an aluminium sealing ring for robust installation in industrial environments.
The tube nozzle is designed for tubing with an 8–9 mm bore, allowing practical connection to a suitable compressed-air supply.
Air purge for infrared temperature sensors
Designed for TWxxxx sensors
M30 sensor design compatibility
Protects lens from contamination
Suitable for dusty environments
Tube nozzle design
Suitable for 8–9 mm bore tubing
Stainless steel construction
Brass components
Aluminium sealing ring
Dusty industrial environments
Furnace temperature monitoring
Metal processing
Cement and mineral processing
High-temperature manufacturing
Infrared sensor protection
Lens contamination prevention
Industrial temperature measurement
| Specification | Details |
|---|---|
| Product Code | E35063 |
| Product Type | Air purge |
| Model | AIR PURGE |
| Application | Infrared temperature sensors |
| Compatible Design | TWxxxx, M30 |
| Main Function | Protection against lens contamination |
| Tube Bore | 8–9 mm |
| Material | Stainless steel 1.4305 / 303 |
| Additional Material | Brass |
| Sealing Ring | Aluminium |
| Weight | 104.2 g |
| Pack Quantity | 1 piece |
