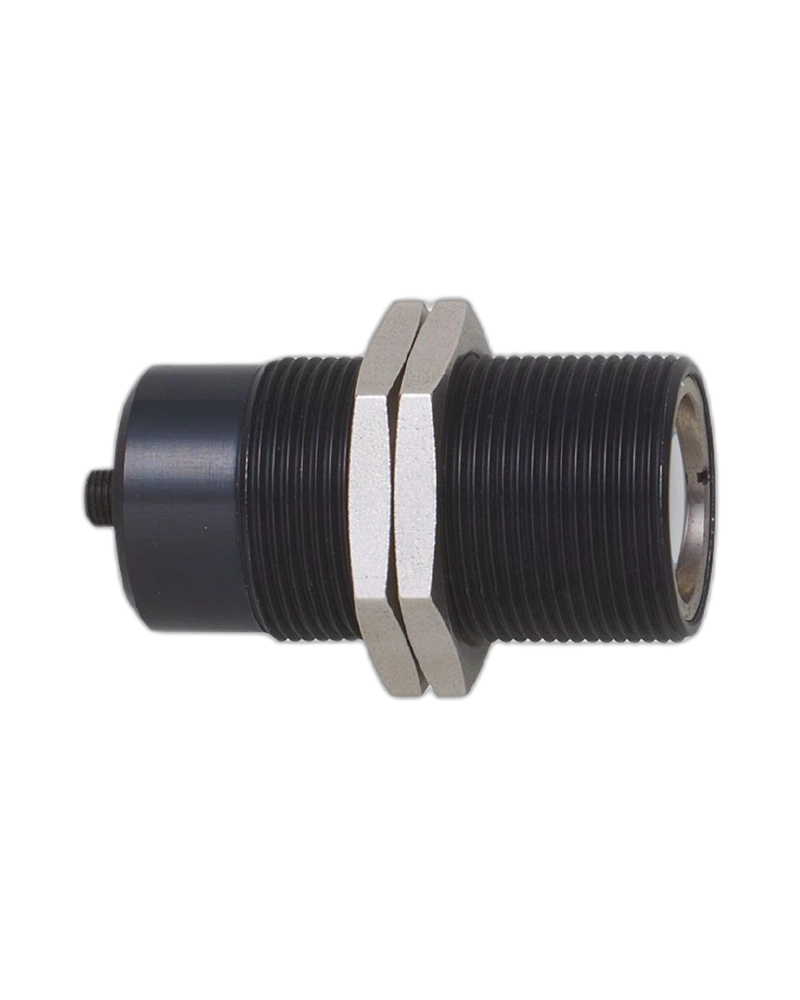

The IFM E35060 measuring head is designed as a lens attachment for compatible infrared temperature sensors. It provides a compact M30 design with a tempered optical glass lens and robust metal construction. The head supports operation in ambient temperatures from -20 to 250 °C and includes a 0.4 m PUR cable, making it suitable for demanding non-contact temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35060 is a measuring head accessory developed for compatible IFM infrared temperature sensors and high-temperature measurement applications.
The measuring head uses tempered optical glass to support reliable infrared sensing and non-contact temperature measurement.
It is designed for ambient temperatures from -20 to 250 °C, making it suitable for demanding industrial environments.
The head combines AlMg3 black anodised material, stainless steel components and an FKM O-ring. Its IP65 protection and compact construction support reliable installation near industrial measurement points.
Measuring head for infrared temperature sensors
M30 × 1.5 design
Tempered optical glass lens
Ambient temperature -20 to 250 °C
IP65 protection
0.4 m PUR cable
5 × 0.50 mm² cable construction
AlMg3 black anodised material
Stainless steel components
FKM sealing O-ring
Non-contact temperature measurement
High-temperature process monitoring
Industrial furnaces
Metal processing
Hot-object temperature measurement
Infrared temperature sensing
Industrial process automation
Temperature monitoring systems
| Specification | Details |
|---|---|
| Product Code | E35060 |
| Product Type | Measuring head |
| Model | SENSOR HEAD |
| Application | Infrared temperature sensors |
| Design | M30 × 1.5 |
| Ambient Temperature | -20 to 250 °C |
| Lens Material | Tempered optical glass |
| Protection Rating | IP65 |
| Cable Length | 0.4 m |
| Cable Material | PUR, halogen-free |
| Cable Size | 5 × 0.50 mm² |
| Current Consumption | <47 mA |
| O-Ring Material | FKM |
| Weight | Approx. 169.5 g |
