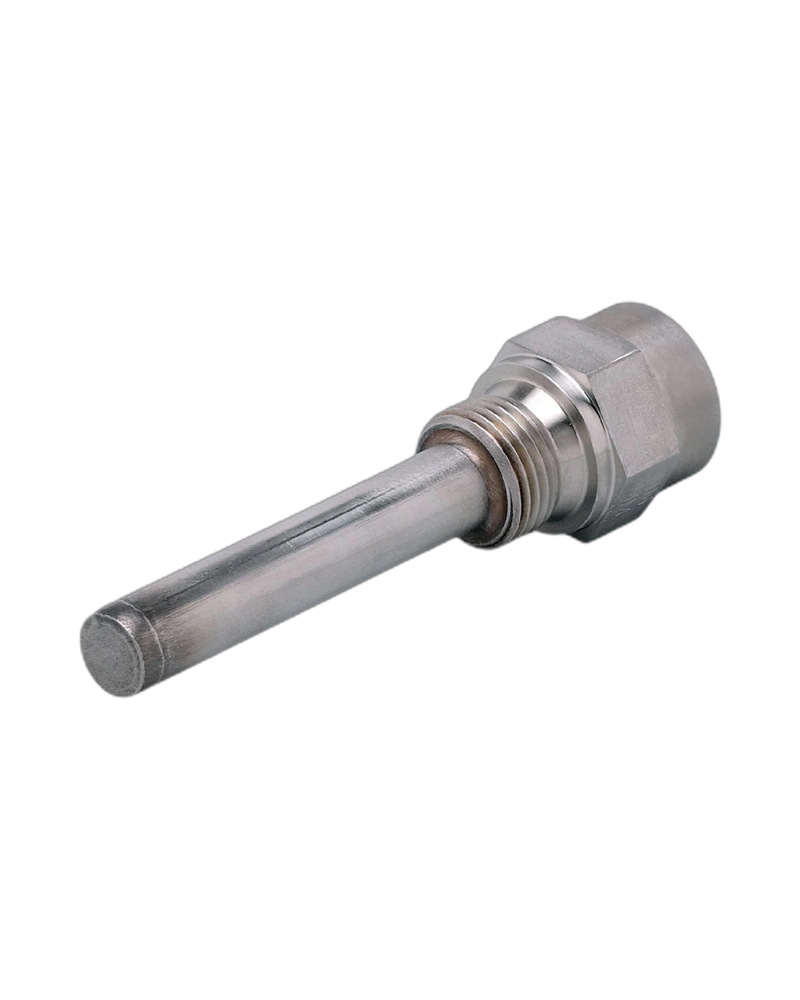

The IFM E35050 thermowell is designed for temperature sensors requiring a long 500 mm installation length. It features a 482 mm probe length, 10 mm diameter and G1/2 sensor and process connections. Manufactured from stainless steel 316L and rated for pressures up to 16 bar, it provides durable sensor protection for deep tanks, vessels, pipelines and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35050 is a long thermowell designed for temperature sensor installations where extended insertion into the process is required.
Its 500 mm installation length and 482 mm probe length make it suitable for deep vessels, tanks and process measurement points.
The thermowell is manufactured from stainless steel 1.4404 / 316L for durable performance in industrial environments.
With a pressure rating of 16 bar / 1.6 MPa, the thermowell provides reliable mechanical protection for compatible temperature sensors in pressurised processes.
500 mm installation length
482 mm probe length
10 mm diameter
G1/2 sensor connection
G1/2 process connection
Stainless steel 316L construction
16 bar pressure rating
Long insertion design
Protects temperature sensors
Suitable for deep measurement points
Deep tank temperature monitoring
Process vessels
Pipeline temperature measurement
Industrial process systems
Liquid temperature monitoring
Heating and cooling systems
Process automation
Industrial temperature instrumentation
| Specification | Details |
|---|---|
| Product Code | E35050 |
| Product Type | Thermowell |
| Model | THERMOWELL D10/G1/2/L=500 |
| Installation Length | 500 mm |
| Probe Length | 482 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | Approx. 271–277.6 g |
| Pack Quantity | 1 piece |
