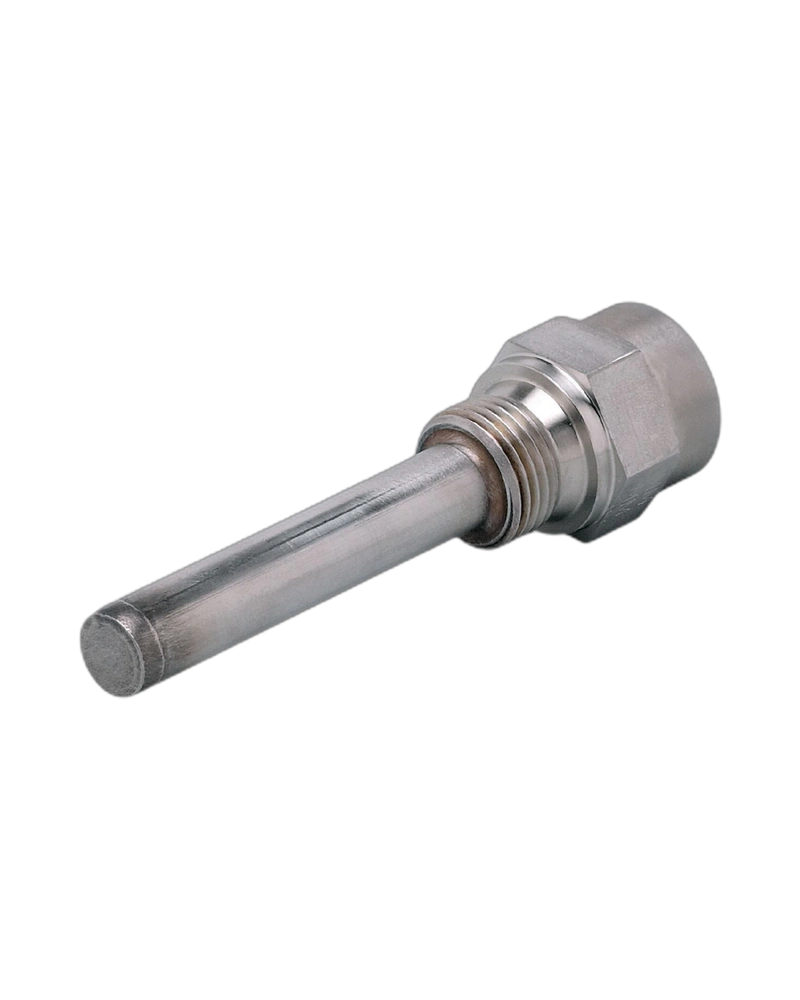

The IFM E35030 thermowell provides reliable protection for temperature sensors used in industrial processes. With a 300 mm installation length, 282 mm probe length, 10 mm diameter and G1/2 connections, it is suitable for deeper measurement points. Its stainless steel 316L construction and 16 bar pressure rating provide durable performance in demanding temperature monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35030 is a long-length thermowell designed for compatible temperature sensors requiring deeper process insertion.
It protects the temperature sensor from direct exposure to aggressive process media, high flow rates and mechanical influences.
The thermowell uses stainless steel 1.4404 / 316L, providing robust mechanical performance and resistance suitable for industrial installations.
The 300 mm installation length and 282 mm probe length allow the sensor to reach deeper measurement locations while maintaining a secure G1/2 process connection.
Designed for temperature sensors
300 mm installation length
282 mm probe length
10 mm diameter
G1/2 sensor connection
G1/2 process connection
Stainless steel 316L construction
16 bar pressure rating
Long insertion design
Reliable sensor protection
Deep tank temperature measurement
Process temperature monitoring
Pipeline temperature measurement
Industrial heating systems
Liquid temperature monitoring
Process automation
Temperature sensor protection
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | E35030 |
| Product Type | Thermowell |
| Model | THERMOWELL D10/G1/2/L=300 |
| Installation Length | 300 mm |
| Probe Length | 282 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | Approx. 198–199 g |
| Pack Quantity | 1 piece |
