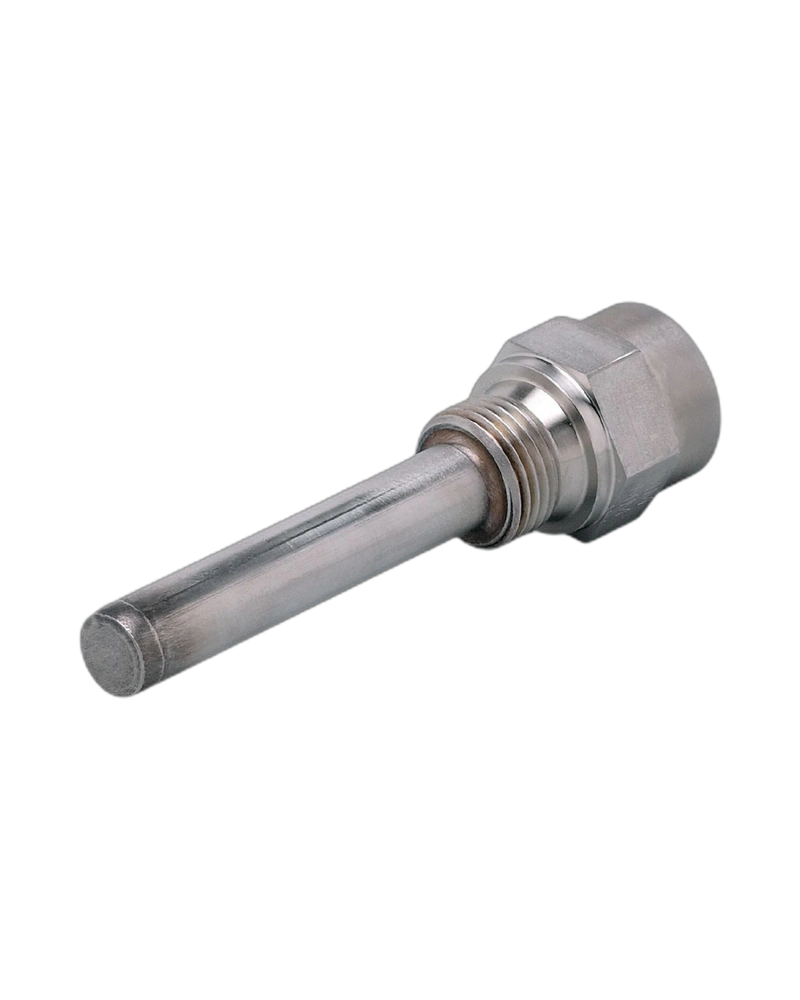

The IFM E35020 thermowell is designed to protect temperature sensors from aggressive process media, high flow conditions and mechanical stress. It features a 200 mm installation length, 10 mm diameter and G1/2 connection. Made from stainless steel 316L, it provides reliable sensor protection and supports pressure ratings up to 16 bar for demanding industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35020 is a robust thermowell designed for compatible IFM temperature sensors and industrial process measurement applications.
The thermowell creates a protective barrier around the temperature sensor, helping protect the sensing element from aggressive media, high flow rates and process-related mechanical effects.
The thermowell is manufactured from stainless steel 1.4404 / 316L, providing good durability and corrosion resistance for industrial environments.
The G1/2 sensor connection and G1/2 process connection allow straightforward installation with compatible temperature sensors and process adapters. The 200 mm design provides an effective insertion length for temperature measurement.
Designed for compatible temperature sensors
200 mm installation length
182 mm probe length
10 mm sensor diameter
G1/2 sensor connection
G1/2 process connection
Stainless steel 316L construction
16 bar pressure rating
Protects sensors from aggressive media
Suitable for demanding industrial environments
Industrial temperature measurement
Process temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Machine temperature monitoring
Temperature sensor protection
Industrial process automation
Process instrumentation
| Specification | Details |
|---|---|
| Product Code | E35020 |
| Product Type | Thermowell |
| Model | THERMOWELL D10/G1/2/L=200 |
| Installation Length | 200 mm |
| Probe Length | 182 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | 161.5 g |
| Pack Quantity | 1 piece |
