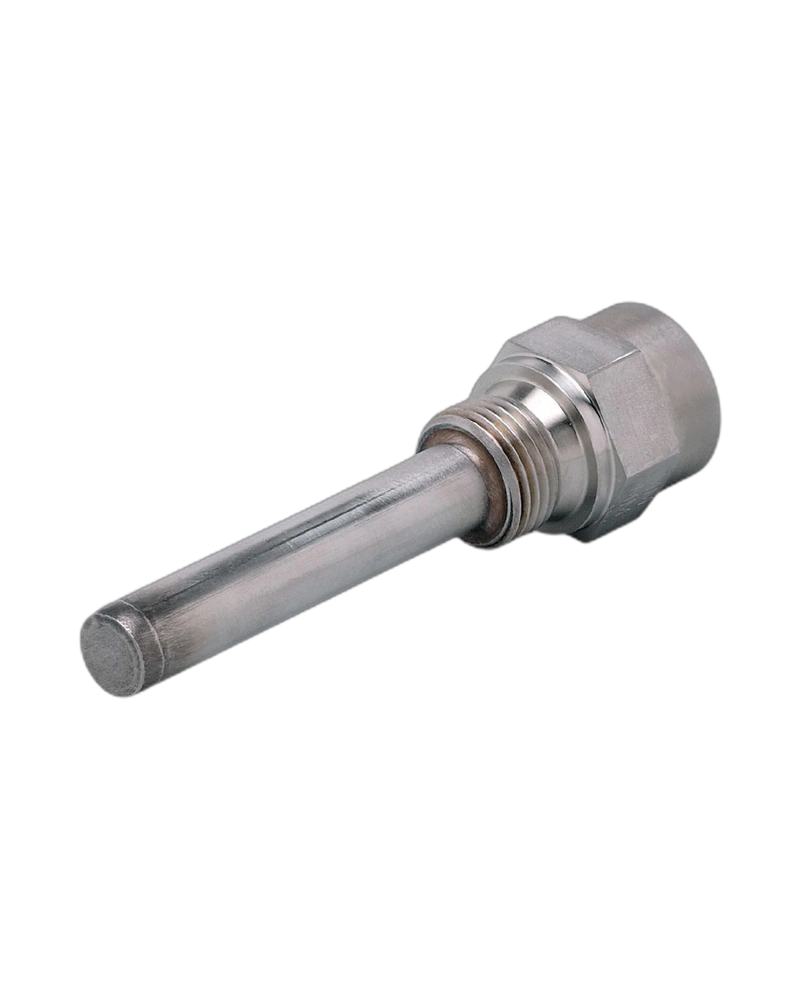

The IFM E35010 thermowell is designed to protect compatible temperature sensors while providing a secure process connection. It features a 10 mm diameter, G1/2 process connection and a nominal 100 mm sensor design with an 82 mm probe length. Manufactured from stainless steel 316L, it supports pressure ratings up to 16 bar and is suitable for industrial temperature measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E35010 is a screw-in thermowell designed for temperature sensors used in industrial process measurement.
The thermowell provides a protective barrier around the temperature sensor probe, helping isolate the sensor from direct process conditions while allowing temperature measurement.
The thermowell is manufactured from stainless steel 1.4404 / 316L, providing durable mechanical construction for industrial temperature measurement installations.
The thermowell provides a G1/2 process connection and accommodates compatible temperature sensors with a 100 mm element length. The specified pressure resistance is 16 bar / 1.6 MPa.
Thermowell for temperature sensors
10 mm diameter
G1/2 process connection
100 mm sensor element length
82 mm probe length
Stainless steel 316L construction
16 bar pressure rating
1.6 MPa pressure resistance
128.8 g weight
Suitable for industrial temperature measurement
Industrial temperature measurement
Process temperature monitoring
Tank temperature measurement
Pipeline temperature monitoring
Machine temperature monitoring
Industrial automation
Temperature sensor protection
Process instrumentation
| Specification | Details |
|---|---|
| Product Code | E35010 |
| Product Type | Thermowell |
| Model | THERMOWELL D10/G1/2/L=100 |
| Application | Temperature sensors |
| Sensor Element Length | 100 mm |
| Probe Length | 82 mm |
| Diameter | Ø10 mm |
| Sensor Connection | G1/2 |
| Process Connection | G1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | 128.8 g |
| Pack Quantity | 1 piece |
