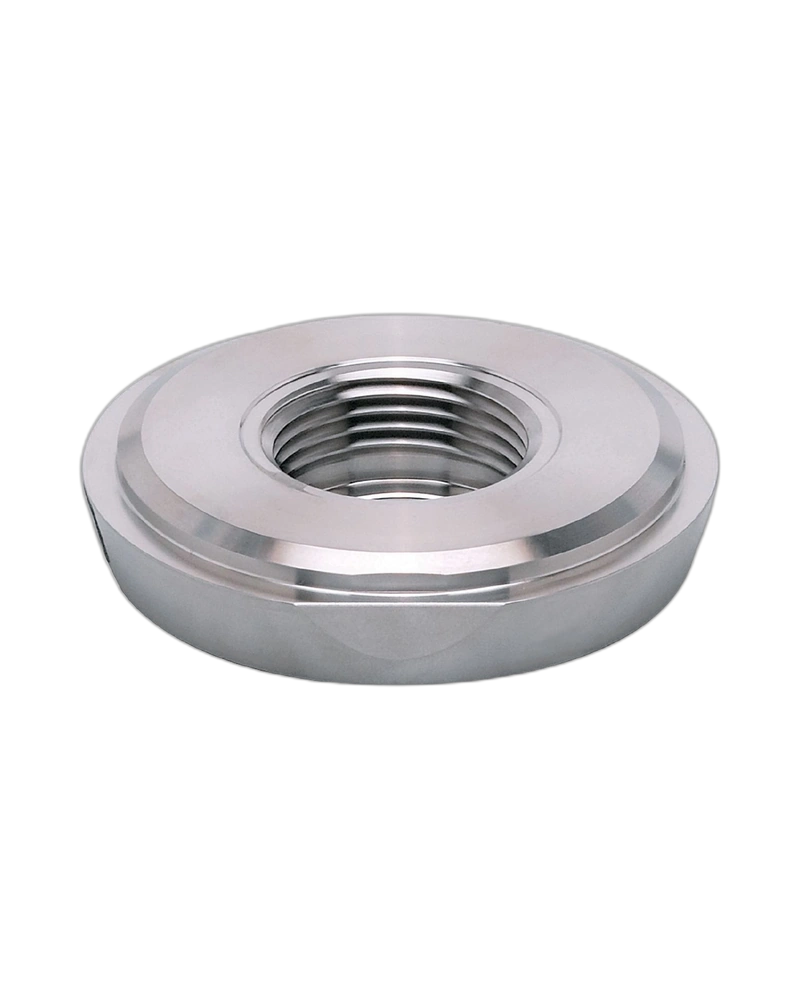

The IFM E33713 process adapter is designed for connecting compatible Aseptoflex Vario process sensors to DN50 (2-inch) hygienic pipe systems. It features a G1 internal Aseptoflex Vario connection, DIN 11851 process fitting and metal-to-metal sealing. Stainless steel 316L construction, smooth wetted surfaces and 25 bar pressure resistance provide reliable performance in sanitary industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33713 provides a robust hygienic connection for process sensors installed in DN50 sanitary pipelines.
The adapter is manufactured from stainless steel 1.4435 / 316L with wetted surface characteristics of Ra < 0.4 µm / Rz = 4 µm.
It provides a G1 internal Aseptoflex Vario sensor connection and a DN50 / 2-inch DIN 11851 process connection with a 68.5 mm diameter.
The adapter supports a pressure rating of 25 bar / 2.5 MPa and uses metal-to-metal sealing. Its H4 hygienic equipment classification makes it suitable for sanitary process applications.
G1 internal Aseptoflex Vario connection
DN50 / 2-inch process connection
DIN 11851 compatibility
68.5 mm process connection diameter
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
Metal-to-metal sealing
25 bar pressure rating
H4 hygienic equipment class
Robust sanitary process design
Food processing
Dairy production
Beverage processing
Hygienic process pipelines
Process sensor installation
Tank and vessel monitoring
Fluid measurement
Sanitary industrial automation
| Specification | Details |
|---|---|
| Product Code | E33713 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN50/2" |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN50 / 2" DIN 11851 |
| Process Diameter | Ø68.5 mm |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz 4 µm |
| Sealing | Metal-to-metal |
| Pressure Rating | 25 bar / 2.5 MPa |
| Hygienic Class | H4 |
| Weight | 353 g |
| Pack Quantity | 1 piece |
