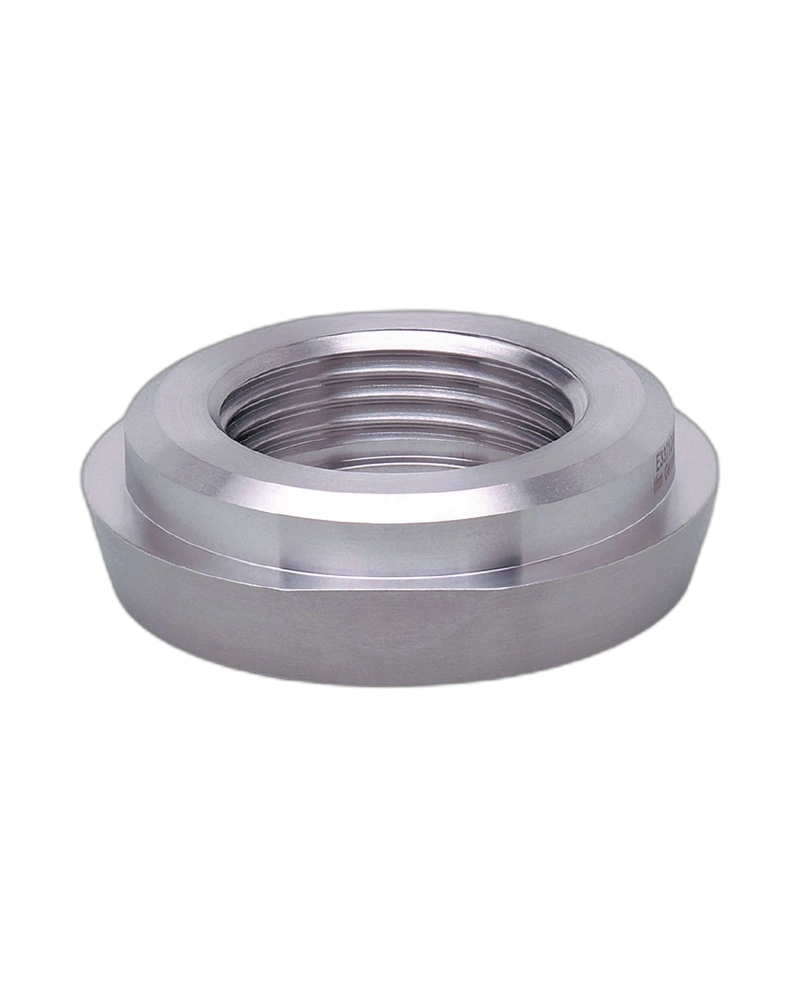

The IFM E33712 hygienic process adapter provides a secure interface for compatible process sensors and DN40 (1.5-inch) hygienic pipelines. It features a G1 internal Aseptoflex Vario connection, stainless steel 316L construction and metal-to-metal sealing. With a 40 bar pressure rating and H4 hygienic equipment classification, it is suitable for demanding food, beverage and sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33712 is designed for reliable process sensor installation in DN40 hygienic piping systems.
Its stainless steel 1.4435 / 316L construction and smooth wetted surface characteristics support hygienic process applications.
The adapter uses a G1 internal Aseptoflex Vario sensor connection and a DN40 / 1.5-inch DIN 11851 process connection.
Metal-to-metal sealing and a 40 bar / 4 MPa pressure rating provide a robust connection for demanding process installations. The adapter is classified as H4 according to DIN 11866.
G1 internal Aseptoflex Vario connection
DN40 / 1.5-inch process connection
DIN 11851 hygienic pipe fitting
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
Metal-to-metal sealing
40 bar pressure rating
H4 hygienic equipment class
Compact sensor mounting solution
Suitable for sanitary applications
Food processing
Beverage production
Dairy processing
Hygienic process pipelines
Process sensor mounting
Fluid monitoring
Pressure measurement
Sanitary production equipment
| Specification | Details |
|---|---|
| Product Code | E33712 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN40/1.5" |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN40 / 1.5" DIN 11851 |
| Process Diameter | Ø56 mm |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz 4 µm |
| Sealing | Metal-to-metal |
| Pressure Rating | 40 bar / 4 MPa |
| Hygienic Class | H4 |
| Weight | 199 g |
| Pack Quantity | 1 piece |
