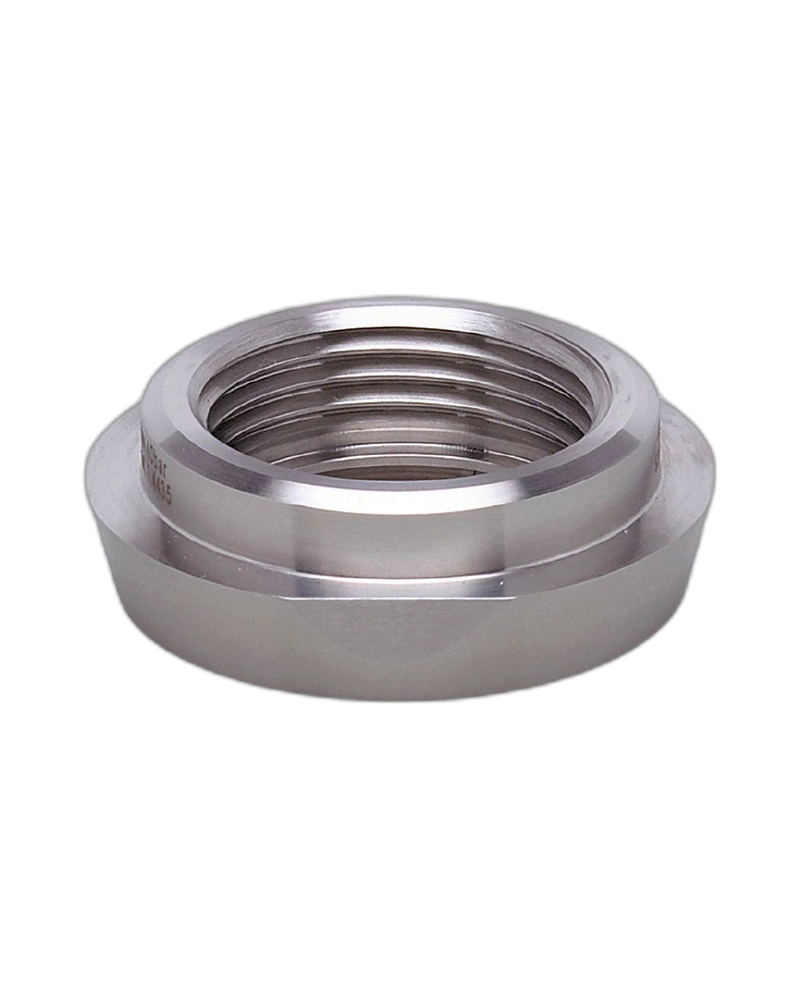

The IFM E33711 hygienic process adapter is designed for installing compatible process sensors in containers and pipelines. It combines a G1 internal Aseptoflex Vario sensor connection with a DN32 (1.25-inch) DIN 11851 hygienic pipe fitting. Stainless steel 316L construction, metal-to-metal sealing, H4 hygienic classification and 40 bar pressure resistance make it suitable for demanding sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33711 provides a reliable connection between compatible Aseptoflex Vario process sensors and DN32 hygienic pipe systems.
The adapter is manufactured from stainless steel 1.4435 / 316L and features smooth wetted-part surface characteristics of Ra < 0.4 µm / Rz 4 µm.
The sensor side provides a G1 internal Aseptoflex Vario connection, while the process side uses a DN32 (1.25-inch) DIN 11851 hygienic pipe fitting.
The adapter supports pressure resistance up to 40 bar / 4 MPa. Metal-to-metal sealing and H4 hygienic classification support reliable sanitary process installation.
G1 internal Aseptoflex Vario connection
DN32 / 1.25-inch process connection
DIN 11851 compatibility
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
Metal-to-metal sealing
40 bar pressure rating
H4 hygienic equipment class
Suitable for food and beverage applications
Compact process adapter design
Food processing equipment
Beverage processing
Dairy processing
Hygienic pipelines
Process sensor installation
Process pressure measurement
Fluid monitoring
Sanitary automation systems
| Specification | Details |
|---|---|
| Product Code | E33711 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN32/1.25" |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN32 / 1.25" DIN 11851 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz 4 µm |
| Sealing | Metal-to-metal |
| Pressure Rating | 40 bar / 4 MPa |
| Hygienic Class | H4 |
| Weight | 136 g |
| Pack Quantity | 1 piece |
