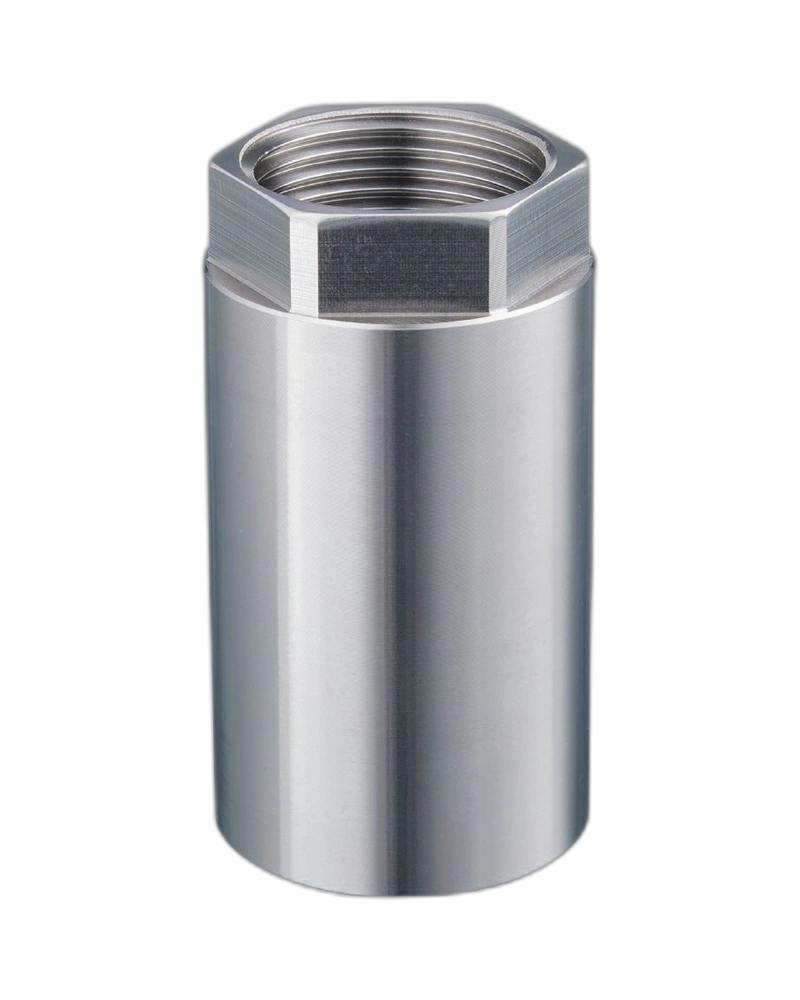

The IFM E33705 LW2120 antenna extension is designed for LPR applications and provides additional mechanical extension for compatible LW2120 radar level sensors. It features a 77.3 mm overall length and 42 mm diameter, with a stainless steel 316L housing, stainless steel retaining ring and POM-C plastic insert. Its robust construction supports reliable sensor installation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33705 is an antenna extension accessory designed specifically for compatible LW2120 sensors used in LPR applications.
The extension provides an additional mechanical interface for positioning the LW2120 antenna appropriately within suitable installation arrangements.
The housing is manufactured from stainless steel 1.4404 / 316L. A stainless steel 1.4310 / 301 retaining ring and POM-C ELS plastic insert provide the remaining mechanical components.
The antenna extension has a diameter of 42 mm and a length of 77.3 mm. Its G1 sensor connection supports compatible LW2120 installation configurations.
LW2120 antenna extension
Designed for LPR applications
42 mm diameter
77.3 mm length
Stainless steel 316L housing
Stainless steel retaining ring
POM-C plastic insert
G1 sensor connection
Robust mechanical construction
Pack quantity of 1 piece
LW2120 radar level sensor installation
LPR applications
Radar level measurement
Industrial tank monitoring
Process level measurement
Sensor positioning
Industrial automation systems
Process instrumentation
| Specification | Details |
|---|---|
| Product Code | E33705 |
| Product Type | Antenna extension |
| Model | ANTENNA EXTENSION /LW2120 |
| Application | LW2120 for LPR applications |
| Diameter | Ø42 mm |
| Length | 77.3 mm |
| Housing Material | Stainless steel 1.4404 / 316L |
| Retaining Ring Material | Stainless steel 1.4310 / 301 |
| Insert Material | POM-C ELS |
| Sensor Connection | G1 |
| Weight | 211.1 g |
| Pack Quantity | 1 piece |
