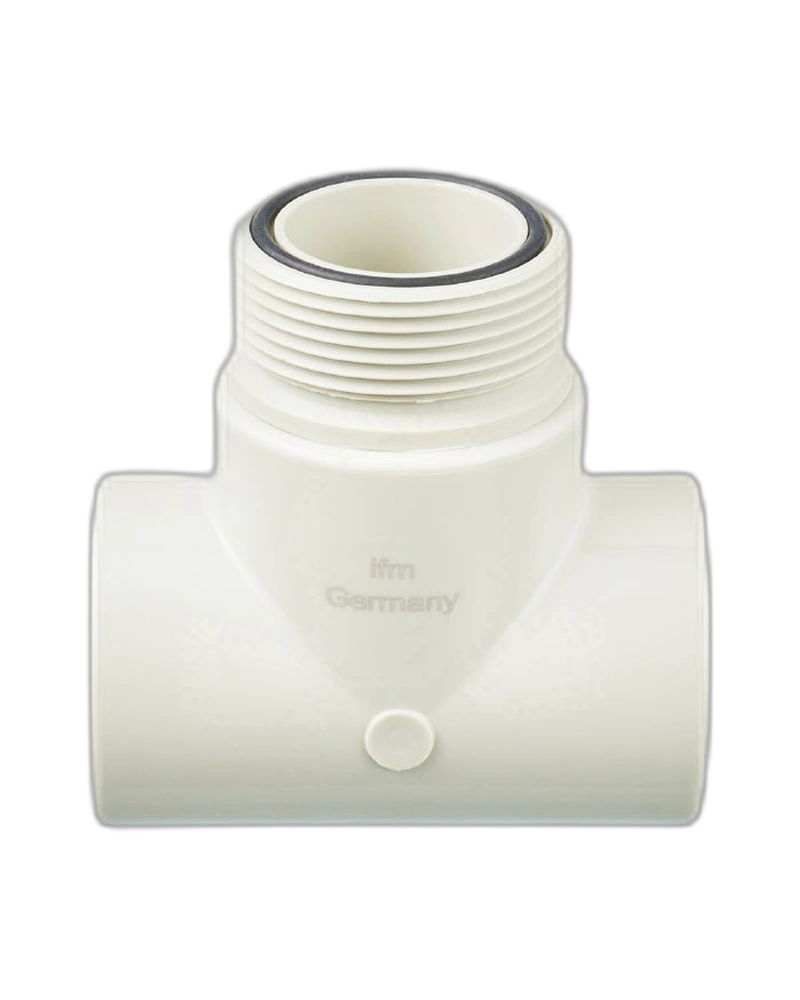

The IFM E33704 T-piece provides a practical connection for installing compatible LDL400 process sensors in DN40 process pipelines. It features a G1 1/2 sensor connection and DN40 welding process connection with a 50 mm diameter. The PP-H housing and EPDM O-ring provide a lightweight construction, while the adapter supports 0 to 80 °C media and up to 10 bar pressure at 20 °C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33704 is a plastic T-piece developed for secure installation of compatible LDL400 process sensors in DN40 process piping.
The housing is manufactured from PP-H and the supplied O-ring is made from EPDM. The construction provides a lightweight solution for suitable process media.
The sensor connection is G1 1/2 according to DIN ISO 228-1. The process connection is a DN40 welding adapter according to EN ISO 15494 with a 50 mm diameter.
The E33704 supports medium temperatures from 0 to 80 °C and a pressure rating of 10 bar / 1 MPa at a medium temperature of 20 °C.
T-piece process adapter
Designed for LDL400 sensor
G1 1/2 sensor connection
DN40 process connection
PP-H housing
EPDM O-ring
EN ISO 15494 welding adapter
Ø50 mm process connection
10 bar pressure rating
0 to 80 °C medium temperature range
LDL400 sensor mounting
Process pipelines
Liquid monitoring
Conductivity measurement
Industrial fluid handling
Process automation
Water-based process applications
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E33704 |
| Product Type | T-piece |
| Model | T-PIPE/PP/G1 1/2 UN / DN40 |
| Suitable Sensor | LDL400 |
| Sensor Connection | G1 1/2 DIN ISO 228-1 |
| Process Connection | DN40 welding adapter |
| Process Diameter | Ø50 mm |
| Housing Material | PP-H |
| O-ring Material | EPDM |
| Pressure Rating | 10 bar / 1 MPa |
| Medium Temperature | 0...80 °C |
| Pressure Rating Condition | At medium temperature of 20 °C |
| Weight | 215.8 g |
| Pack Quantity | 1 piece |
