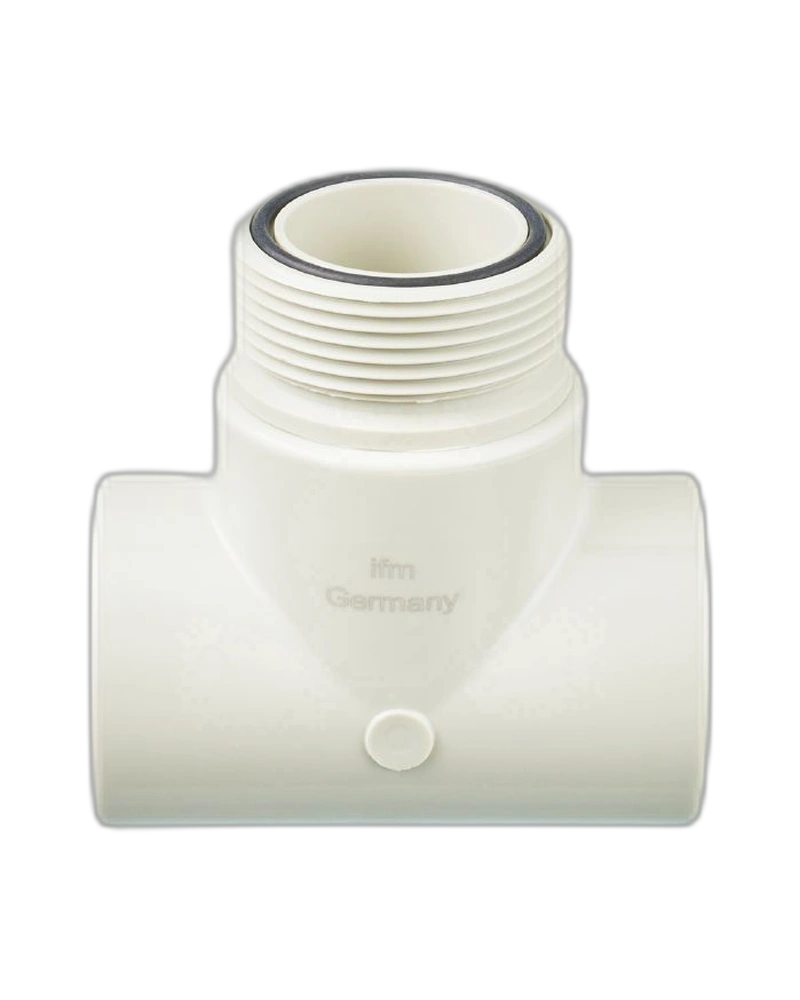

The IFM E33703 T-piece is designed for safe installation of compatible LDL400 process sensors in DN32 pipelines. It combines a G1 1/2 sensor connection with a DN32 process connection and is manufactured from PP-H with an EPDM O-ring. Designed for media temperatures from 0 to 80 °C and pressures up to 10 bar at 20 °C, it provides a practical solution for process piping applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33703 is a plastic T-piece designed specifically for secure installation of compatible LDL400 process sensors in process pipelines.
The wetted housing is manufactured from PP-H and the supplied sealing element is an EPDM O-ring. This lightweight construction is suitable for compatible process media and installations.
The sensor connection uses G1 1/2 according to DIN ISO 228-1. The process side uses a DN32 welding adapter according to EN ISO 15494 with a 40 mm diameter.
The E33703 is designed for LDL400 applications with medium temperatures from 0 to 80 °C. Its pressure rating is 10 bar / 1 MPa at a medium temperature of 20 °C.
T-piece process adapter
Designed for LDL400 sensor
G1 1/2 sensor connection
DN32 process connection
PP-H housing
EPDM O-ring
EN ISO 15494 compatible welding adapter
Ø40 mm process connection
10 bar pressure rating
0 to 80 °C medium temperature range
LDL400 sensor installation
Process pipelines
Liquid monitoring
Conductivity measurement
Industrial fluid systems
Chemical-compatible process installations
Water-based process applications
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E33703 |
| Product Type | T-piece |
| Model | T-PIPE/PP/G1 1/2 UN / DN32 |
| Suitable Sensor | LDL400 |
| Sensor Connection | G1 1/2 DIN ISO 228-1 |
| Process Connection | DN32 welding adapter |
| Process Diameter | Ø40 mm |
| Housing Material | PP-H |
| O-ring Material | EPDM |
| Pressure Rating | 10 bar / 1 MPa |
| Medium Temperature | 0...80 °C |
| Pressure Rating Condition | At medium temperature of 20 °C |
| Weight | 131.1 g |
| Pack Quantity | 1 piece |
