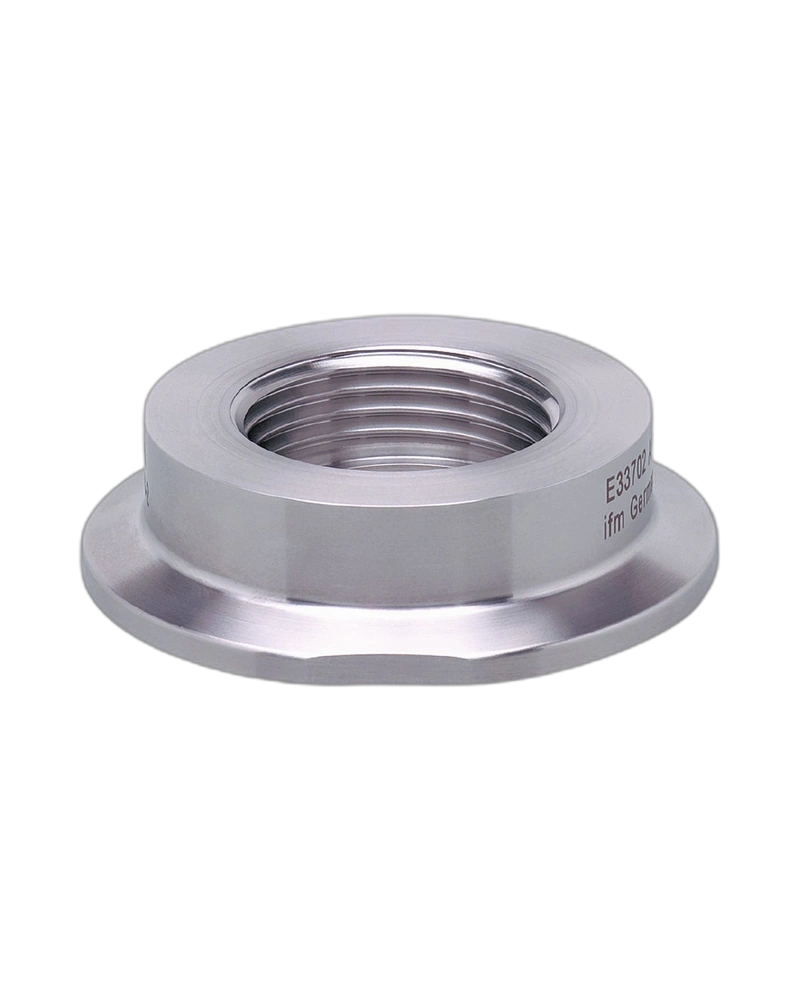

The IFM E33702 Tri-Clamp process adapter provides a hygienic connection for Aseptoflex Vario process sensors on DN50 / 2-inch pipe systems. It combines a G1 internal Aseptoflex Vario thread with a DIN 32676 / ISO 2852 clamp connection. Stainless steel 316L construction, metal-to-metal sealing, H4 hygienic classification and 16 bar pressure capability support reliable process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33702 is designed for secure integration of Aseptoflex Vario process sensors into larger hygienic DN50 / 2-inch piping systems.
The adapter is manufactured from stainless steel 1.4435 / 316L and provides Ra < 0.4 µm / Rz = 4 µm surface characteristics.
The process connection is a DN50 / 2-inch clamp with a 64 mm diameter according to DIN 32676 / ISO 2852. The sensor side uses a G1 internal Aseptoflex Vario connection.
The E33702 uses metal-to-metal sealing and supports a pressure rating of 16 bar / 1.6 MPa. It is classified as H4 according to DIN 11866.
G1 internal Aseptoflex Vario thread
DN50 / 2-inch clamp connection
64 mm process connection diameter
DIN 32676 / ISO 2852 compatible
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
16 bar pressure rating
Metal-to-metal sealing
H4 hygienic equipment class
Compact process adapter design
Food processing systems
Beverage production
Hygienic pipe systems
Process sensor mounting
Pressure measurement
Fluid monitoring
Sanitary process equipment
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E33702 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT IFM-CLAMP ISO2852 2" |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | Clamp DN50 / 2" |
| Process Diameter | Ø64 mm |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar / 1.6 MPa |
| Sealing | Metal-to-metal |
| Hygienic Class | H4 |
| Weight | 231 g |
| Pack Quantity | 1 piece |
