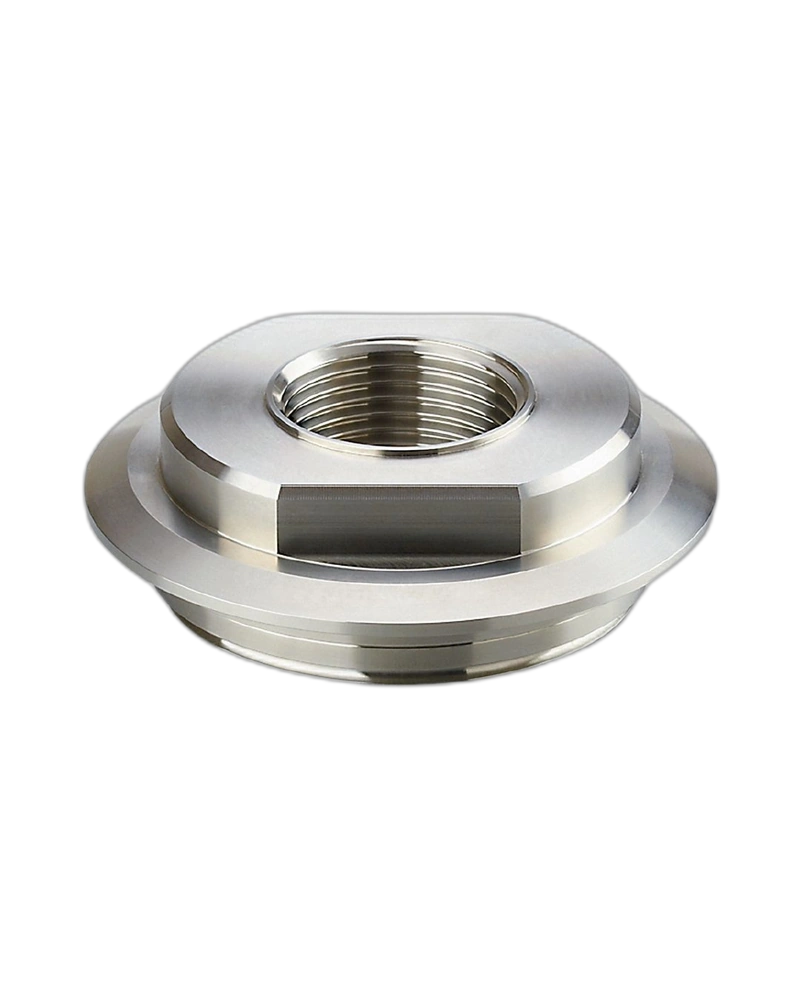

The IFM E33622 Varivent process adapter is designed for installing compatible process sensors on hygienic Varivent process connections. It features a G1 sensor connection and Varivent Form N process connection with a 68 mm diameter for DN40 to DN150 pipe systems. Stainless steel 316L construction, smooth Ra 0.4 µm / Rz 4 µm surfaces and a 25 bar pressure rating support reliable hygienic process measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33622 is a Varivent process adapter designed to provide a reliable interface between compatible process sensors and hygienic Varivent piping systems.
The adapter is manufactured from stainless steel 1.4435 / 316L. Its wetted surfaces have Ra 0.4 µm / Rz 4 µm characteristics for hygienic process applications.
The process side uses a Varivent Form N connection with a 68 mm diameter. It is suitable for DN40 to DN150 (1.5 to 6 inch) pipe systems.
The E33622 supports a pressure rating of 25 bar and has H4 hygienic equipment classification according to DIN 11866.
Varivent process adapter
G1 sensor connection
Varivent Form N connection
D = 68 mm process connection
DN40 to DN150 compatibility
Stainless steel 316L construction
Ra 0.4 µm / Rz 4 µm surface characteristics
25 bar pressure rating
H4 hygienic equipment class
Compact hygienic process connection
Food processing
Dairy processing
Beverage production
Pharmaceutical process systems
Hygienic pipe installations
Process sensor mounting
Pressure measurement
Sanitary fluid processing
| Specification | Details |
|---|---|
| Product Code | E33622 |
| Product Type | Process adapter Varivent |
| Model | ADAPT IFM-VARIV D=68 (DN40-125) |
| Sensor Connection | G1 |
| Process Connection | Varivent Form N |
| Process Diameter | D = 68 mm |
| Pipe Compatibility | DN40...DN150 (1.5...6") |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra 0.4 µm / Rz 4 µm |
| Pressure Rating | 25 bar |
| Hygienic Class | H4 according to DIN 11866 |
| Weight | 622.4 g |
| Pack Quantity | 1 piece |
