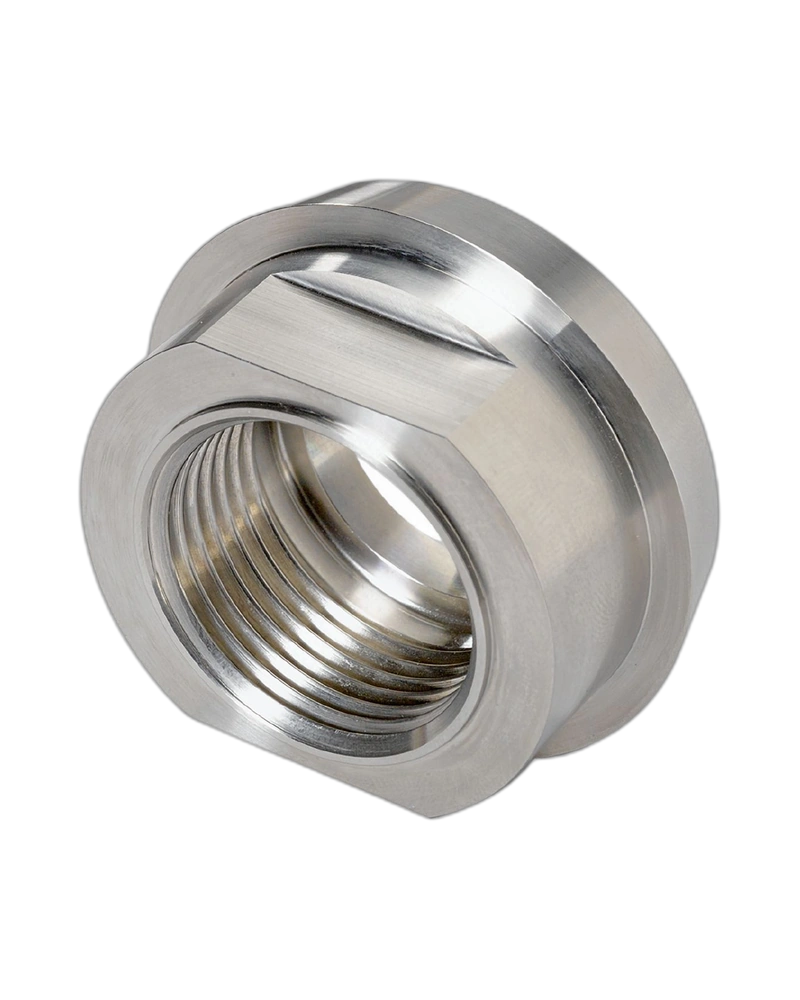

The IFM E33612 hygienic process adapter is designed to connect compatible process sensors to DN40 (1.5-inch) hygienic pipe fittings. It provides a G1 sealing cone and stainless steel 316L construction with smooth Ra < 0.4 µm surface characteristics. With a 40 bar pressure rating and hygienic design, it is suitable for food, beverage, pharmaceutical and sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33612 is a hygienic pipe-fitting adapter designed for secure installation of compatible process sensors in DN40 process piping.
The adapter is manufactured from stainless steel 1.4435 / 316L and provides smooth wetted-part surface characteristics of Ra < 0.4 µm / Rz = 4 µm.
The sensor side features a G1 sealing cone, while the process side is designed for a DN40 (1.5-inch) hygienic pipe fitting according to DIN 11851.
The E33612 supports a pressure rating of 40 bar / 4 MPa. Its hygienic construction makes it suitable for demanding sanitary process installations.
G1 sealing cone
DN40 / 1.5-inch process connection
DIN 11851 hygienic pipe fitting
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
40 bar pressure rating
H4 hygienic design
Compact sensor mounting solution
Suitable for hygienic processing
Pack quantity of 1 piece
Food processing
Dairy processing
Beverage production
Pharmaceutical equipment
Hygienic process pipelines
Process sensor installation
Fluid measurement
Sanitary automation systems
| Specification | Details |
|---|---|
| Product Code | E33612 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT G1-DIN11851/DN40 (1.5) |
| Sensor Connection | G1 sealing cone |
| Process Connection | Hygienic pipe fitting DN40 (1.5") |
| Standard | DIN 11851 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 40 bar / 4 MPa |
| Hygienic Design | H4 |
| Weight | 283.5 g |
| Pack Quantity | 1 piece |
