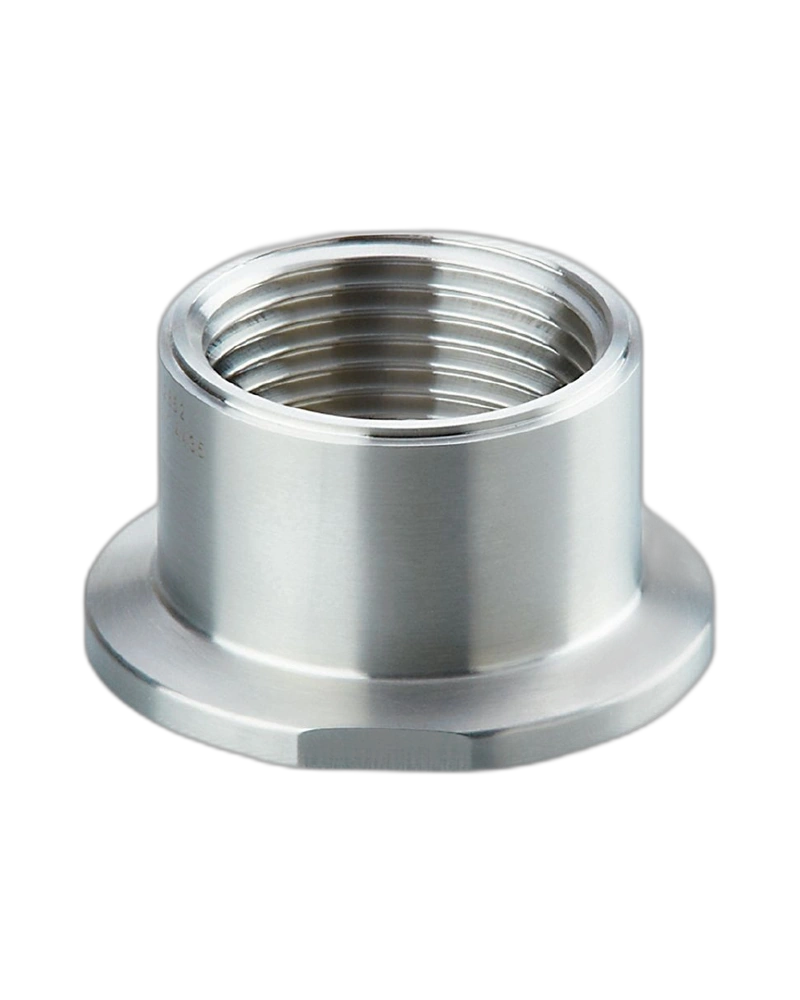

The IFM E33602 Tri-Clamp process adapter provides a secure hygienic connection between compatible process sensors and DN25 to DN40 pipe systems. It features a G1 sealing cone, DIN 32676 / ISO 2852 clamp connection and an integrated leakage port. Stainless steel 316L construction, H4 hygienic classification and a 100 bar pressure rating support demanding industrial and hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33602 is a high-pressure Tri-Clamp process adapter designed for reliable installation of process sensors in hygienic piping systems.
The adapter is manufactured from stainless steel 1.4435 / 316L and provides smooth wetted-part surface characteristics of Ra < 0.4 µm / Rz = 4 µm.
An integrated leakage port helps identify possible leakage around the sealing area. This feature is useful in hygienic installations where reliable sealing and process monitoring are important.
The adapter provides a G1 sealing cone and DN25 to DN40 clamp connection according to DIN 32676 / ISO 2852. It is rated up to 100 bar and is classified as H4 according to DIN 11866.
G1 sealing cone
DN25 to DN40 clamp connection
DIN 32676 / ISO 2852 compatibility
Integrated leakage port
Stainless steel 316L construction
Ra < 0.4 µm surface finish
100 bar pressure rating
H4 hygienic equipment class
EPDM FDA-compliant O-ring supplied
FKM FDA-compliant O-ring supplied
High-pressure process systems
Food processing
Beverage processing
Hygienic pipelines
Process sensor mounting
Fluid monitoring
Pressure measurement
Sanitary industrial equipment
| Specification | Details |
|---|---|
| Product Code | E33602 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT G1-CLAMP ISO2852/1-1.5 |
| Sensor Connection | G1 sealing cone |
| Process Connection | Clamp DN25...DN40 (1...1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 100 bar / 10 MPa |
| Leakage Port | Yes |
| Sealing | Gasket |
| Hygienic Class | H4 |
| Supplied Seals | EPDM and FKM, FDA compliant |
| Weight | 156.5 g |
| Pack Quantity | 1 piece |
