The IFM E33601 process adapter is designed to connect compatible process sensors to hygienic DN25 to DN40 pipe systems. It features a G1 sealing cone and a DIN 32676 / ISO 2852 clamp connection. Stainless steel 316L construction, smooth Ra < 0.4 µm wetted surfaces and a 16 bar pressure rating provide reliable performance in food, beverage and sanitary process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

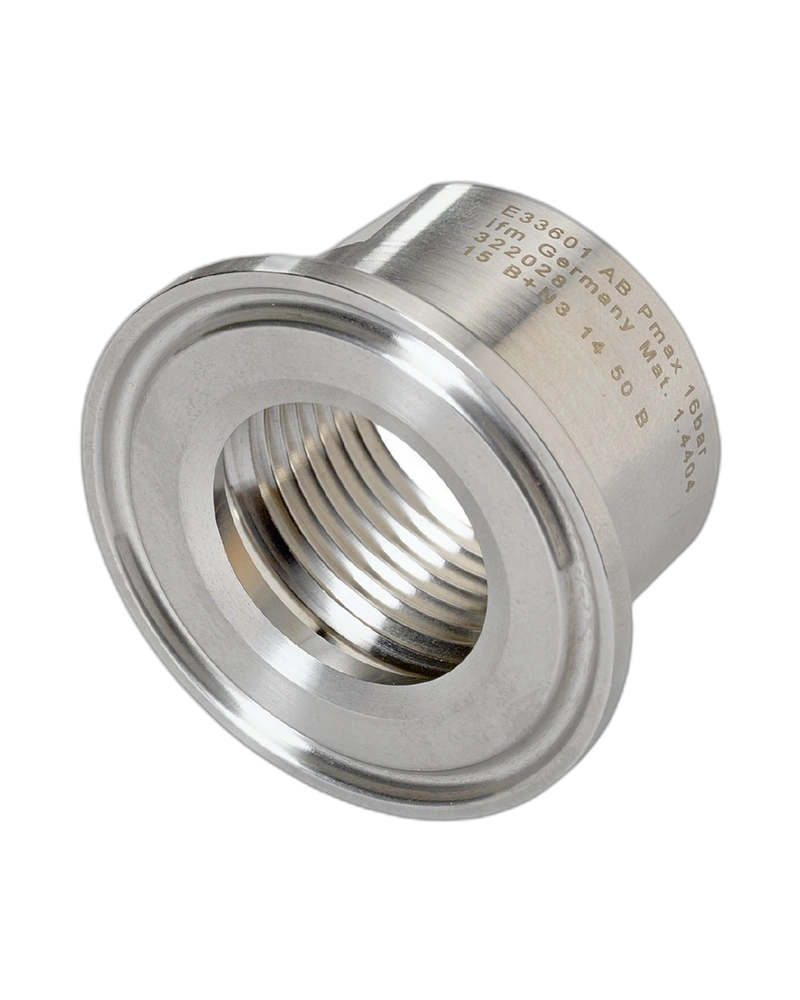

The E33601 is a compact Tri-Clamp process adapter developed for secure installation of compatible process sensors in hygienic pipe systems.
The adapter is manufactured from stainless steel 1.4404 / 316L. Its wetted surfaces have Ra < 0.4 µm and Rz = 4 µm characteristics, supporting hygienic process requirements.
The sensor side uses a G1 sealing cone, while the process side provides a DN25 to DN40 (1 to 1.5 inch) clamp connection according to DIN 32676 / ISO 2852.
The E33601 supports a pressure rating of 16 bar. Its stainless steel construction and hygienic design make it suitable for reliable process sensor integration.
G1 sealing cone sensor connection
DN25 to DN40 clamp process connection
DIN 32676 / ISO 2852 compatible
Stainless steel 316L construction
Ra < 0.4 µm surface characteristics
16 bar pressure rating
H4 hygienic equipment class
Compact process adapter design
Secure sensor installation
Pack quantity of 1 piece
Food processing equipment
Beverage processing systems
Hygienic process pipelines
Process sensor installation
Fluid measurement
Pressure monitoring
Sanitary production equipment
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33601 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT G1-CLAMP ISO2852/1-1.5 |
| Sensor Connection | G1 sealing cone |
| Process Connection | Clamp DN25...DN40 (1...1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 1.4404 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar |
| Hygienic Class | H4 according to DIN 11866 |
| Weight | 140 g |
| Pack Quantity | 1 piece |
