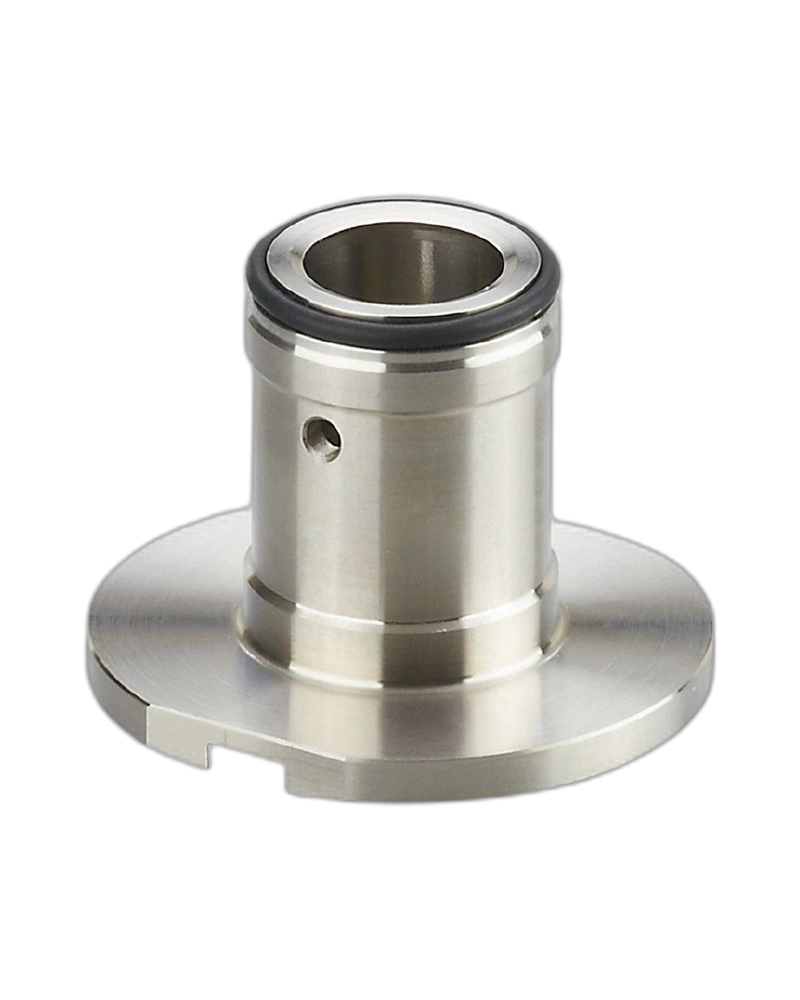

The IFM E33405 Tri-Clamp process adapter is designed for hygienic installation of compatible process sensors on DN38 / 1.5-inch sanitary pipe systems. It combines a G1/2 sealing cone with a DN38 clamp connection and integrated leakage port. Stainless steel 316L construction, metal-to-PEEK sealing and H3 hygienic classification provide dependable performance in demanding process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33405 is a hygienic Tri-Clamp process adapter developed for secure process sensor installation on DN38 sanitary pipe systems.
The adapter is manufactured from stainless steel 1.4404/316L. Its wetted surface characteristics are < 0.8 µm / 8 µm, supporting hygienic process applications.
An integrated leakage port helps provide visibility of potential leakage around the sealing area. This makes the adapter suitable for applications where reliable hygienic sealing is important.
The adapter provides a G1/2 sealing cone and DN38 / 1.5-inch clamp process connection. Metal-to-PEEK sealing is used, with EPDM and FKM O-rings supplied.
G1/2 sealing cone
DN38 / 1.5-inch clamp connection
Integrated leakage port
Stainless steel 316L construction
Metal-to-PEEK sealing
Ra < 0.8 µm / Rz = 8 µm surface characteristics
25 bar pressure rating
H3 hygienic equipment class
EPDM and FKM O-rings supplied
Pack quantity of 1 piece
Food processing
Beverage production
Hygienic process piping
Sanitary equipment
Process sensor installation
Pressure measurement
Fluid monitoring
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33405 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT G1/2 - 3A/DN38 |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN38 / 1.5" |
| Material | Stainless steel 1.4404 / 316L |
| Surface Characteristics | < 0.8 µm / 8 µm |
| Sealing | Metal to PEEK |
| Leakage Port | Yes |
| Pressure Rating | 25 bar |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | Approx. 142.5 g |
| Pack Quantity | 1 piece |
