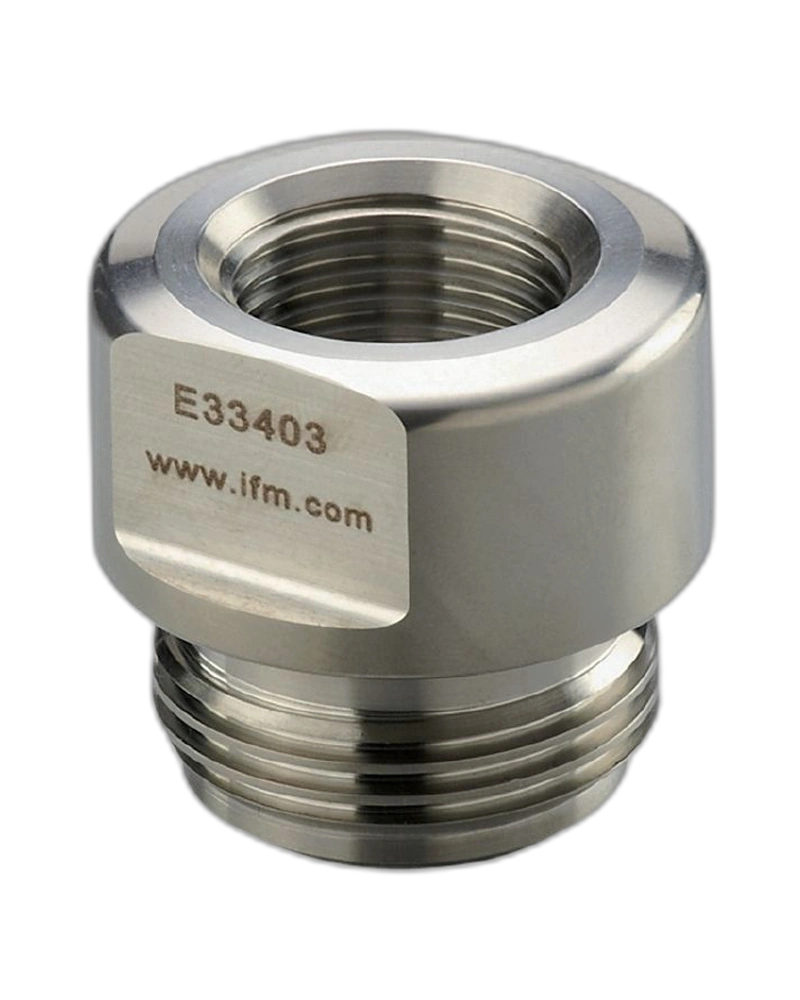

The IFM E33403 screw-in adapter provides a secure Aseptoflex process connection for compatible process sensors. It features a G1/2 sealing cone, Aseptoflex threaded process connection and stainless steel 316L construction. With Ra < 0.4 µm surface characteristics and a 50 bar pressure rating, it offers a robust solution for hygienic process measurement and sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33403 is a screw-in process adapter designed for installing compatible process sensors using an Aseptoflex process connection.
The adapter is manufactured from stainless steel 1.4435/316L. Both the adapter surface and wetted areas provide smooth surface characteristics of Ra < 0.4 µm / Rz = 4 µm.
The sensor connection uses a G1/2 sealing cone, while the process connection uses an Aseptoflex threaded connection. This provides a compact and secure sensor mounting arrangement.
The E33403 supports a pressure rating of 50 bar / 5 MPa, making it suitable for demanding process applications requiring a robust mechanical connection.
Screw-in process adapter
G1/2 sealing cone
Aseptoflex threaded process connection
Stainless steel 316L construction
Ra < 0.4 µm surface finish
50 bar pressure rating
Compact mounting design
Secure sensor installation
Hygienic process connection
Pack quantity of 1 piece
Process sensor mounting
Pressure measurement
Hygienic process systems
Food and beverage equipment
Industrial fluid processing
Process pipelines
Tank installations
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E33403 |
| Product Type | Screw-in adapter |
| Model | ADAPT G1/2-ASEPTOFLEX |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Aseptoflex threaded connection |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | Approx. 187 g |
| Pack Quantity | 1 piece |
