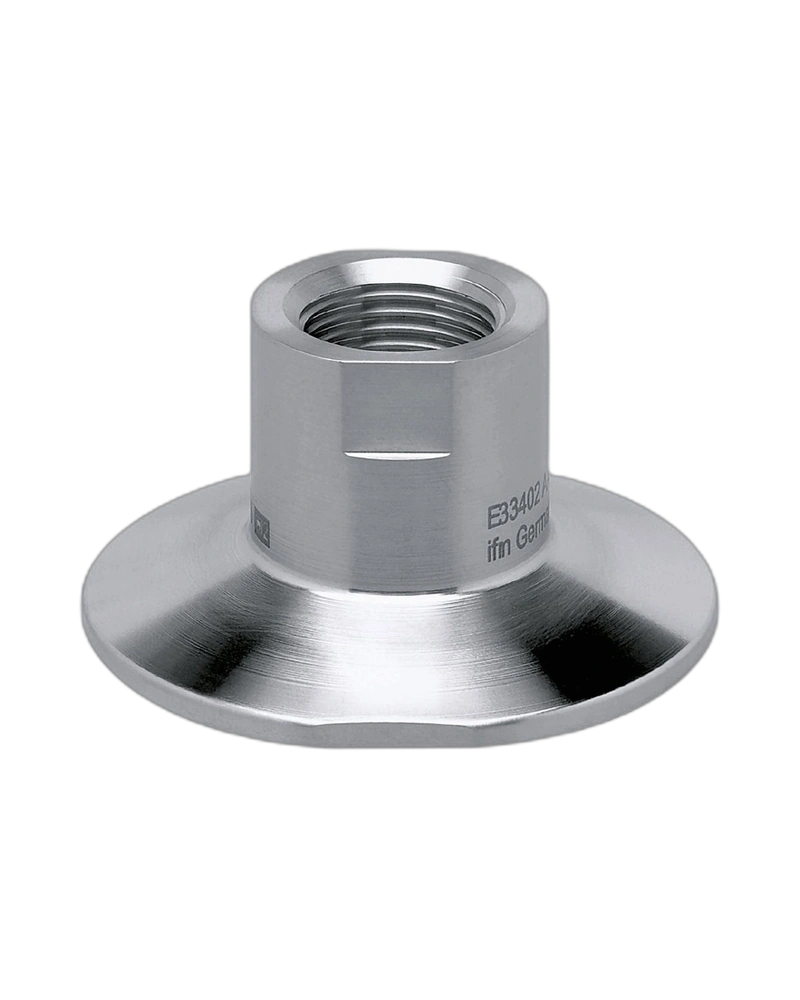

The IFM E33402 Tri-Clamp process adapter is designed for connecting compatible process sensors to larger hygienic DN50 / 2-inch pipe systems. It combines a G1/2 sealing cone with a DIN 32676 / ISO 2852 clamp connection. Stainless steel 316L construction and a smooth Ra < 0.4 µm surface support hygienic installations, while the 16 bar pressure rating provides reliable process performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33402 is a Tri-Clamp process adapter designed for reliable integration of process sensors into larger hygienic pipe systems.
The adapter is manufactured from stainless steel 1.4435/316L. Its wetted surfaces provide Ra < 0.4 µm / Rz = 4 µm characteristics for hygienic process applications.
The adapter provides a G1/2 sealing cone on the sensor side and a DN50 / 2-inch clamp process connection according to DIN 32676 / ISO 2852.
The E33402 is rated for pressures up to 16 bar / 1.6 MPa. Its robust stainless steel construction provides dependable performance in sanitary process installations.
G1/2 sealing cone
DN50 / 2-inch clamp connection
DIN 32676 / ISO 2852 compatible
Stainless steel 316L construction
Ra < 0.4 µm surface finish
16 bar pressure rating
Hygienic process connection
Compact adapter design
Suitable for sanitary piping
Pack quantity of 1 piece
Food processing plants
Beverage processing
Hygienic pipelines
Process tanks
Fluid measurement
Pressure monitoring
Sanitary production equipment
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33402 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT G1/2-CLAMP DIN32676/2 |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN50 / 2" |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar / 1.6 MPa |
| Weight | Approx. 269 g |
| Pack Quantity | 1 piece |
